REP-TAT-P-1131-01 Removing chain tensioner

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

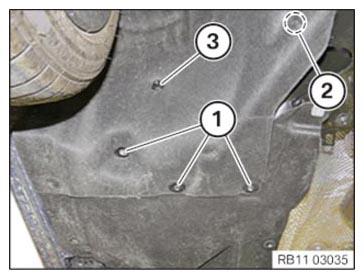

• Loosen screws (1) and (2).
• Loosen nut (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

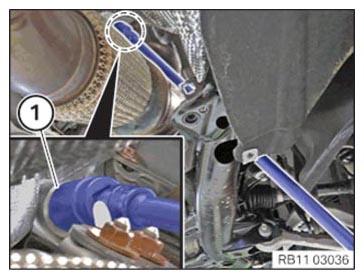

• Loosen chain tensioner using the illustrated tool.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Keep a cloth handy, since a small amount of engine oil emerges during the removal of the chain tensioner (1).
• Bend the wheel arch cover slightly to the side.
• Loosen chain tensioner (1) from below.

NOTE: Unscrew the chain tensioner from the top by hand.

Courtesy of BMW OF NORTH AMERICA, INC.
