REP-TAT-P-1700-12 Bleed the high-temperature coolant system
Vent the high-temperature coolant system
NOTE:
TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted .
Failure to observe this rule runs the risk of component damage/engine damage.
Filling specification absolutely must be adhered to.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise functional limitations (degradation) and/or overheating may result.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
Filling without the vacuum filling equipment (watering can filling) is not permitted .
Failure to observe this rule runs the risk of component damage/engine damage.
Filling specification absolutely must be adhered to.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise functional limitations (degradation) and/or overheating may result.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
NOTE:
TECHNICAL INFORMATION
Before starting the automatic cooling system bleeding procedure, make sure that both coolant circuits are filled. The cooling system bleeding procedure is automatically started simultaneously for both coolant circuits. If the cooling system bleeding procedure is started while one of the coolant circuits is empty, there is a risk of damage to the electric coolant pump when running it dry.
Make sure that terminal 15 is not disconnected for the bleeding procedure . Switch on low-beam headlights and hazard warning lights. If the low-beam headlights and hazard warning lights are not switched on, the ignition (terminal 15) will switch off automatically after a certain period of time and interrupt the bleeding procedure.
Before starting the automatic cooling system bleeding procedure, make sure that both coolant circuits are filled. The cooling system bleeding procedure is automatically started simultaneously for both coolant circuits. If the cooling system bleeding procedure is started while one of the coolant circuits is empty, there is a risk of damage to the electric coolant pump when running it dry.
Make sure that terminal 15 is not disconnected for the bleeding procedure . Switch on low-beam headlights and hazard warning lights. If the low-beam headlights and hazard warning lights are not switched on, the ignition (terminal 15) will switch off automatically after a certain period of time and interrupt the bleeding procedure.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
During the cooling system bleeding procedure, the fan may sporadically activate.
During the cooling system bleeding procedure, the fan may sporadically activate.
- Remove the vacuum filler device from the coolant expansion tank of the high-temperature coolant system.
- Open the bleeder screw on the coolant expansion tank for the high-temperature coolant circuit and close it again after approx. 10 s
.
The bleeder screw may be closed before the 10 s have elapsed when coolant emerges.
- Adjust the filling level in the coolant expansion tank of the high-temperature cooling system to the maximum mark.
- Close the sealing cap on the coolant expansion tank of the high-temperature cooling circuit.
- Connect battery charger.
- Close driver's seat belt.
- Switch on ignition by quickly operating the START-STOP button three times.
- Set the heating to the maximum temperature and the blower to the lowest setting.
- Floor the accelerator pedal and hold for 15 s
.
The automatic cooling system bleeding routine will be initiated.
- Start engine.
The Idle speed is automatically increased to 1200 rpm .

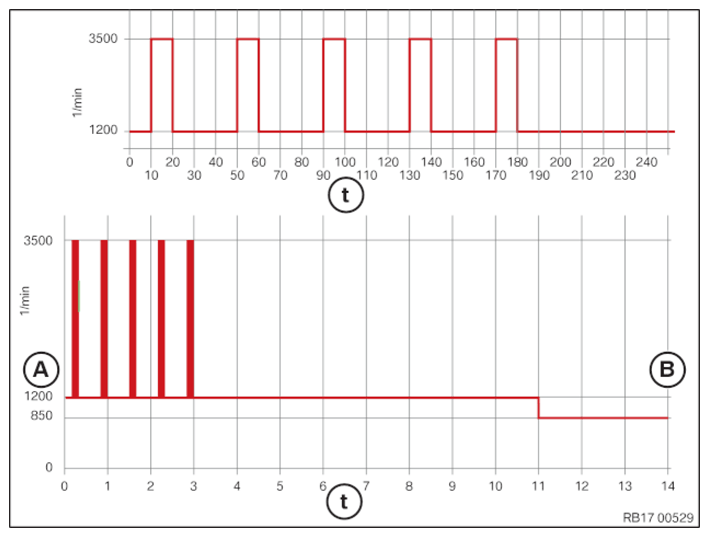

- Step on the accelerator pedal to approximately 3500 rpm, hold engine speed 10 seconds .
- Hold idle speed for 30 s .
- Step on the accelerator pedal to approximately 3500 rpm, hold engine speed 10 seconds .
- Hold idle speed for 30 s .
- Step on the accelerator pedal to approximately 3500 rpm, hold engine speed 10 seconds .
- Hold idle speed for 30 s .
- Step on the accelerator pedal to approximately 3500 rpm, hold engine speed 10 seconds .
- Hold idle speed for 30 s .
- Step on the accelerator pedal to approximately 3500 rpm, hold engine speed 10 seconds .
The cooling system bleeding routine has finished approximately 11 min after the engine starts.
The engine speed drops to the idle speed again.
- Switch off engine.
- Allow the engine to cool down.
- Adjust the filling level in the coolant expansion tank of the high-temperature coolant circuit to 200 ml above the maximum mark.
- Close the sealing cap (1) until the arrows are flush.
