REP-TAT-P-1353-02 Installing fuel delivery line
- Slide the fuel supply line in the direction of the arrow into the snap fastener 2
and lock.
The fuel supply line must be audibly engage in the snap fastener 2 .
- Secure the clamp 1 .
- Tighten down screw 3
.TIGHTENING TORQUES SPECIFICATIONS

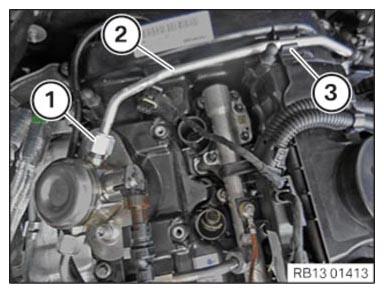

Fuel line to cylinder head cover 6x18 tightening torque 7 Nm - Guide the fuel delivery line 2 in and install.
- Install rubber damper 3 .
- Make sure the rubber damper 3 is fitted correct.
- Tighten the union nut 1 hand-tight.
- Tighten union nut 1
.TIGHTENING TORQUES SPECIFICATIONS
Feed line to high pressure pump M14X1.5
If 34 Nm is exceeded, replace the feed line.31 Nm - Check fuel system for leak tightness.
