REP-TAT-P-1353-02 Install high pressure pump

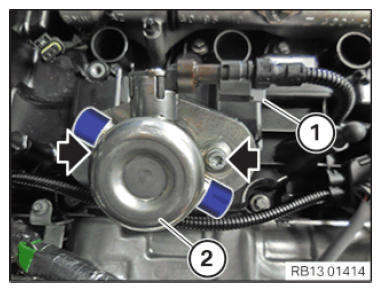

- Feed in and install high pressure pump (2).
- Replace the bolts (arrows).
Parts : screw
- Position the screws (arrows) of the high-pressure pump (2) and tighten alternating
in 90°
-steps.
Compliance with this specification is imperative to make sure that the piston will not break due to twisting.
TIGHTENING TORQUES SPECIFICATIONSHigh pressure pump to cylinder head cover M6X25 Replace screws.
Tightening torque12 Nm - Connect and lock the connector (1).
The connector (1) must engage audibly.
