REP-TAT-P-1112-02 Installing cylinder head cover

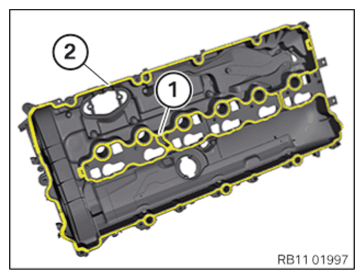

Replace gaskets (1) and (2).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

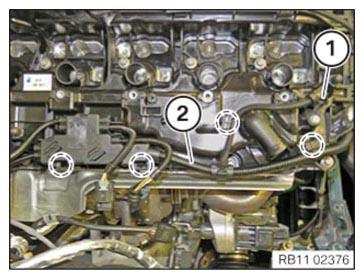

Make sure that the cylinder head cover (1) is correctly installed in the marked area on the high pressure pump bracket (2).
The cylinder head cover (1) must not tap the high pressure pump bracket (2) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Position cylinder head cover.
Make sure that the cylinder head cover does not tap the high pressure pump bracket!

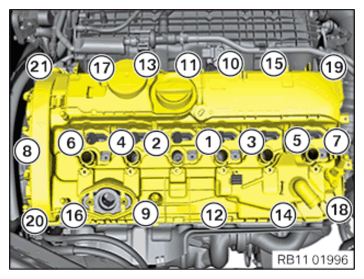

Tighten all screws in a sequence from (1) to (21).

TIGHTEN TORQUES SPECIFICATIONS

Cylinder head cover to cylinder head
M6 x 27	10 Nm

Fig 1: Cylinder Head Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

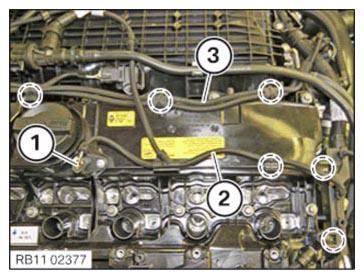

Clip in wiring harnesses (2) and (3) in the marked regions.
Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

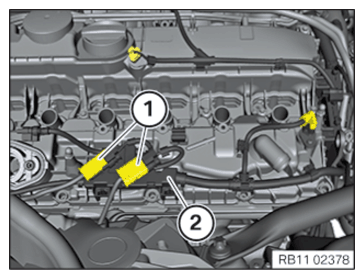

Clip in wiring harness (2) in marked areas.
Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

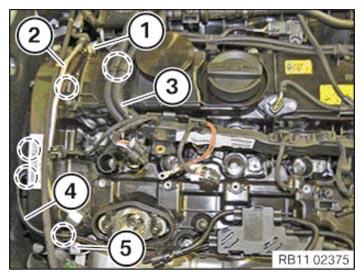

Position the holder of the positive battery cable and tighten with the screw (5).

TIGHTEN TORQUES SPECIFICATIONS

Holder, positive battery cable to cylinder head cover
Self-tapping plastic screw 6 x 18	6.5 Nm

TIGHTEN TORQUES SPECIFICATIONS

Fuel delivery line to cylinder head cover
Self-tapping plastic screw 6 x 18	6.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

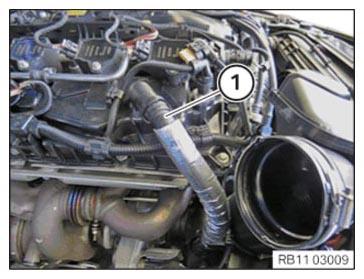

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
