REP-TAT-P-1153-02 Install coolant feed line

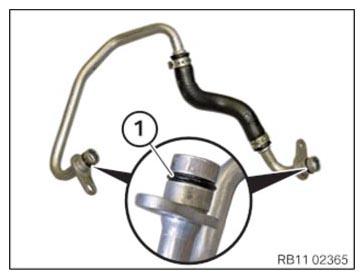

• Replace the O-rings (1).

  Parts:  O-rings

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the coolant feed line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant feed line (2) at the engine block.
• Tighten down screw (1).

TIGHTEN TORQUES SPECIFICATIONS

Coolant feed line to engine block
M6 x 12	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant feed line (1) at the exhaust turbocharger.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant return line (2) at the exhaust turbocharger.
• Tighten down screw (1).

TIGHTEN TORQUES SPECIFICATIONS

Coolant feed line/coolant return line to exhaust turbocharger
M6 x 12	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
