REP-TAT-P-1711-02 Install fan cowl

Prerequisite

Ignition is switched off.

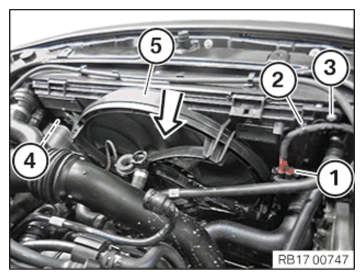

• Feed in and install the fan cowl (5) in the direction of the arrow.

  The lock (4) must audibly engage.

• Tighten down screw (3).

• Secure clamps (2).
• Connect and lock the connector (1).

  The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
