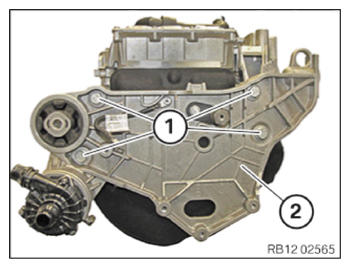

Installing the mounting bracket of the electrical machine

• Install the mounting bracket (2)  .
• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Mounting bracket on electrical machine
  M10		56 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE EKK (DRIVE UNIT REMOVED) .
• Refer to INSTALLING EME .
• Refer to MOUNTING THE POWER RAILS ON THE ELECTRICAL MACHINE ELECTRONICS (EME) .
• Refer to INSTALLING THE LID ON THE SIDE OF THE ELECTRICAL MACHINE ELECTRONICS (EME) .
• Refer to CONNECTING THE COOLANT LINE TO THE SIDE OF THE EME .
• Refer to INSTALLING THE CABLE CLIP ON THE SIDE OF THE EME .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION AT THE TOP OF THE EME .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTIONS ON THE SIDE OF THE EME .
• Refer to FASTENING THE ASSEMBLY FRAME ON TO THE DRIVE UNIT .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION AT THE EME .
• Refer to INSTALLING THE TENSION RELIEF .
• Refer to CONNECTING THE COOLANT HOSES .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION ON THE KLE .
• Refer to CONNECTING THE PLUG CONNECTION TO THE ELECTRIC COOLANT PUMP .
• Refer to CONNECTING THE REFRIGERANT LINE TO THE HEAT EXCHANGER .
• Refer to ATTACHING THE COOLANT HOSE .
• Refer to INSTALLING THE HOLDER FROM HEATER VALVE .
• Refer to CLOSING THE PLUG CONNECTIONS .
• Refer to POSITIONING THE DRIVE UNIT ON THE MOBILE LIFTING TABLE .
• Refer to INSTALLING THE DRIVE UNIT WITH THE ASSEMBLY FRAME .
• Refer to CLOSING THE PLUG CONNECTION ON HEAT EXCHANGER .
• Refer to CONNECTING THE COOLANT HOSE TO THE HEATING AND AIR-CONDITIONING UNIT .
• Refer to CLOSING THE COOLANT HOSES AT THE HIGH-VOLTAGE BATTERY UNIT .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION ON THE HIGH-VOLTAGE BATTERY .
• Refer to CONNECTING THE COOLANT HOSE TO THE ELECTRIC AUXILIARY HEATER .
• Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION ON THE ELECTRIC AUXILIARY HEATER .
• Refer to FASTENING THE WIRING HARNESS TO THE TRANSMISSION .
• Refer to CONNECTING THE REFRIGERANT LINE .
• Refer to CONNECTING THE REFRIGERANT LINE .
• Refer to INSTALLING THE EXPANSION TANK .
• Refer to CONNECTING AND LOCKING THE LEFT CONNECTOR .
• Refer to INSTALLING THE NEGATIVE BATTERY CABLE .
• Refer to INSTALLING THE POSITIVE BATTERY CABLE .
• Refer to CONNECTING AND LOCKING THE CONNECTOR .
• Refer to CONNECTING AND LOCKING THE HIGH-VOLTAGE CONNECTOR TO THE KLE .
• Refer to CONNECTING AND LOCKING THE HIGH-VOLTAGE CONNECTORS .
• Refer to FASTENING THE POTENTIAL EQUALIZATION LINE ONTO THE BODY (RIGHT) .
• Refer to INSTALLING THE FRONT END .
• Refer to INSTALLING THE BATTERY .
• Refer to INSTALLING BATTERY CARRIER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to CHECK/ADD THE OIL LEVEL IN THE ELECTRIC MACHINE TRANSMISSION .
• Refer to REMOVING THE RADIAL SHAFT SEAL FOR THE RIGHT-HAND OUTPUT SHAFT ON THE ELECTRIC MACHINE TRANSMISSION .
• Refer to REMOVING THE RADIAL SHAFT SEAL FOR THE LEFT-HAND OUTPUT SHAFT ON THE ELECTRIC MACHINE TRANSMISSION .
• Refer to INSTALLING THE RADIAL SHAFT SEAL FOR THE LEFT-HAND OUTPUT SHAFT ON THE ELECTRIC MACHINE TRANSMISSION
• Refer to INSTALLING THE RADIAL SHAFT SEAL FOR THE RIGHT-HAND OUTPUT SHAFT ON THE ELECTRIC MACHINE TRANSMISSION .
• Refer to INSTALLING RIGHT OUTPUT SHAFT .
• Refer to INSTALLING LEFT OUTPUT SHAFT .
• Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING
• Refer to FASTENING THE ENGINE PENDULUM SUPPORT TO THE COMPONENT CARRIER .
• Refer to INSTALLING WHEEL ARCH COVER AT FRONT LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT RIGHT AND LEFT WHEEL .
• Refer to CONNECTING COOLANT LINES TO THE HIGH-VOLTAGE BATTERY UNIT .
• Refer to CONNECTING COOLANT LINES TO THE COOLANT PUMP OF THE POWER ELECTRONICS .
• Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
• Refer to AIR BLEEDING THE COOLANT CIRCUIT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE BRACE ON THE FRONT SUBFRAME .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE COVER OF THE HIGH-VOLTAGE SAFETY PLUG .
• Refer to EVACUATING THE AIR CONDITIONING .
• Refer to FILLING THE AIR CONDITIONING .
• Refer to ADJUSTING HEADLIGHTS .
