Fastening the right and left output shafts onto the wheel bearing

NOTE: Perform the steps on the left and right side.

NOTE: Description is for left component only. Procedure on the right side is identical.

Fasten the output shaft on the wheel bearing

NOTE: TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.

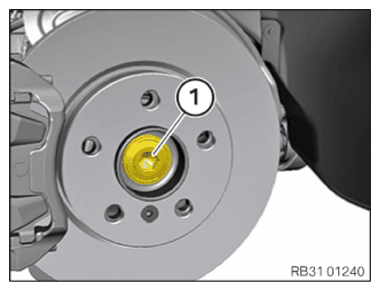

Replace the collar screw (1) and compression spring (2).
Parts: Collar screw, compression spring
Note installation position of compression spring (2).
Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

Courtesy of BMW OF NORTH AMERICA, INC.
Hand-tighten the collar screw (1) with the compression spring.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
Twist the wheel bearing (1) and output shaft (2) in opposite directions to check whether the front gearing teeth mesh (arrow).
Verify positive locking.
Press brake pedal.

Tighten the collar screw.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Output shaft to wheel bearing
M16 Replace the collar screw.	Joining torque	210 Nm
	Angle of rotation	90°
