Installing the positive battery cable

Place the positive battery cable (4) as shown.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Positive battery cable to electrical machine electronics (EME)
M8
	15 Nm

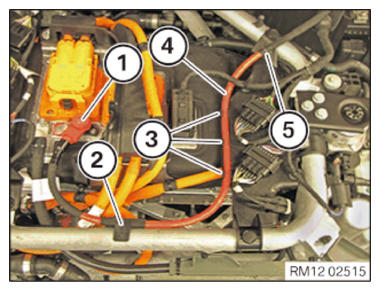

G15474178

Courtesy of BMW OF NORTH AMERICA, INC.

Close the cap (1).
Fasten the positive battery cable (4) to the location (2).
Insert the positive battery cable (4) in the guide (3).
Fasten the positive battery cable (4) to the location (5).
