Positioning the drive unit on the mobile lifting table

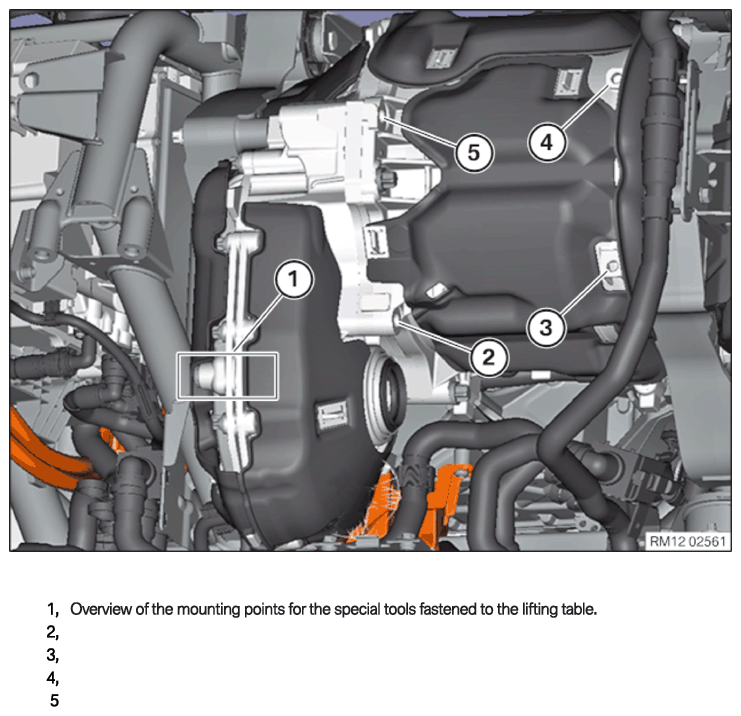

Mounting points of the electrical machine

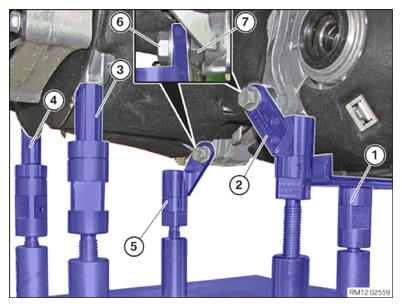

- Lay the drive unit as shown on the special tools (1) , (2) , (3) , (4) and (5) .
- Position the special tools (1) , (2) , (3) , (4) and (5) at the mounting points of the drive unit.
- Secure screw (6)
(M12x45) to the special tool (2)
as shown with the nut (7)
(M12).
Insert the screw (6) (M12x45) into the opening of the electrical machine.
Do not screw the screw (6) into the transmission.
- Secure screw (6)
(M12x45) to the special tool (5)
as shown with the nut (7)
(M12).
Insert the screw (6) (M12x45) into the opening of the electrical machine.

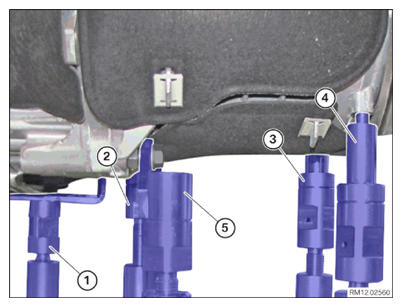

- The figure shows the position of the special tools from the opposite side.
