Installing the cable clip on the side of the EME
Installing the cable clip on the side of the EME

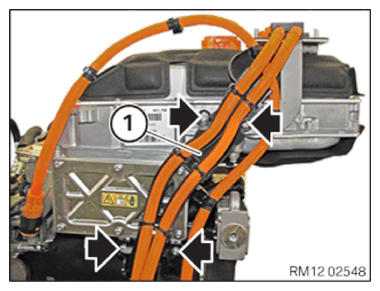

Install the cable clip (1) with the high-voltage cables.
Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
cable clip to the electrical machine electronics
M6
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
