Installing the expansion tank

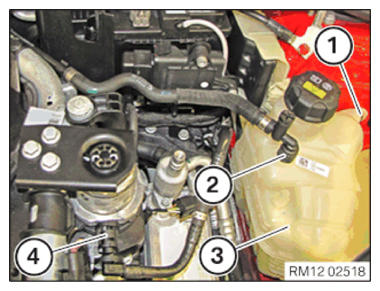

Install the expansion tank (3).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Coolant expansion tank to body
M6x20
	8 Nm

Connect the hose (2).
Connect the vacuum connection (4).

Courtesy of BMW OF NORTH AMERICA, INC.
