Fastening the potential equalization line onto the body (right)

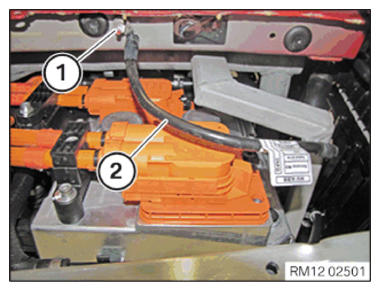

Position the equipotential bonding line (2) on the body.
WARNING:
Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!
- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Potential equalization line to body
M6
	8 Nm
