Connecting the coolant hoses
Connecting the coolant hoses

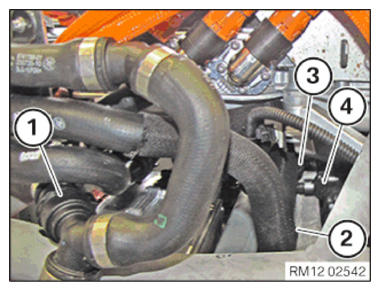

Close the plug connection (4) at the parking lock.
Connect the coolant hose (3).
Attach the coolant hose mounting (2).
Connect the coolant hose (1).
