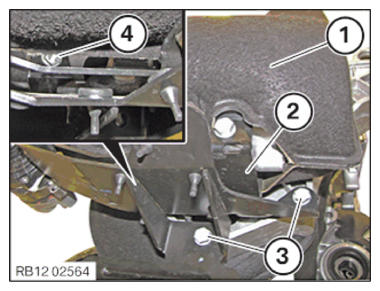

- Install the EKK (1) with the holder (2).
- Tighten the screws (3).
TIGHTENING TORQUES SPECIFICATION
| EKK to engine support bracket |
| M8 |
|
| |
19 Nm |
- Tighten down screw (4).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
TIGHTENING TORQUES SPECIFICATION
| EKK to engine support bracket |
| M8 |
|
| |
19 Nm |

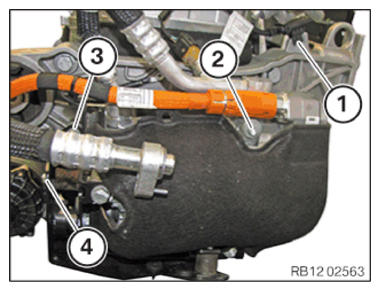

- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| EKK to engine support bracket |
| M6 |
|
| |
8 Nm |
- Tighten down screw (3).
TIGHTENING TORQUES SPECIFICATION
| EKK to engine support bracket |
| M8 |
|
| |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Tighten nut (4).
TIGHTENING TORQUES SPECIFICATION
| EKK to engine support bracket |
| M6 |
|
| |
8 Nm |
- Clip in the cable clip (1).
WARNING:
Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!
- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

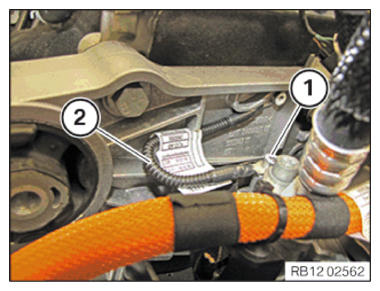

- Install the equipotential bonding line (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Potential equalization line to EKK |
| M6 |
|
| |
8 Nm |
