Connecting the refrigerant line to the heat exchanger
Connecting the refrigerant line to the heat exchanger
Replace the sealing ring.
Parts:
Sealing ring

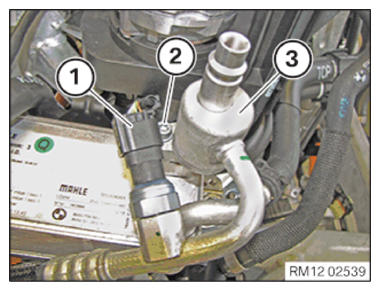

Connect the refrigerant line (3).
Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
Refrigerant line to heat exchanger for heating system
M6
13 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Close the plug connection (1).
Courtesy of BMW OF NORTH AMERICA, INC.
