Fasten the engine pendulum support to the component carrier

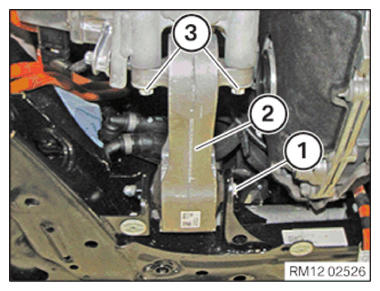

If necessary, press the electrical machine slightly to the front and position the engine pendulum support (2) on the component carrier.

Tighten the screws (3).

TIGHTENING TORQUES SPECIFICATION

Engine pendulum support to component carrier
M12x100	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Engine pendulum support on front subframe
M12
	100 Nm
