Mounting the power rails on the electrical machine electronics (EME)
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- Do not touch conductor lines!
- Clean the tools that are used to tighten the screws of the busbars.
Tools must not have any residue of operating fluids.
- Use new, grease-free and clean gloves.
Gloves must not have any residue of operating fluids.

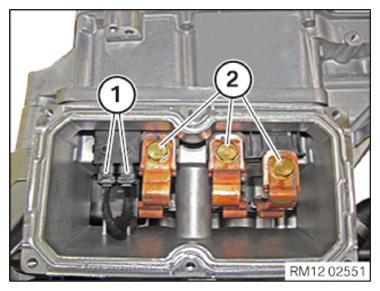

- Remove new screws (2) with gloves and screw in.
Parts: Screws
Busbars and cable heads must not have any residue of operating fluids.
New screws (2) must not have any residue of operating fluids.
- Tighten the screws (2).TIGHTENING TORQUES SPECIFICATION
Busbar to connecting housing M8
Replace screws.14 Nm - Connect connectors (1) and lock.
