Retrofit Reversing Camera - AN54.65-S-0030E

Model 447.7

With Code EN7 (Audio 15)

With Code JA7 (Blind Spot Monitoring)

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Except Code ZK4 (Mixto)

Model 447.7

With Code EN7 (Audio 15)

With Code JD1 (Digital tachograph)

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Except Code ZK4 (Mixto)

Model 447.7

With Code EN7 (Audio 15)

With Code JV6 (Tachograph pre-installation kit)

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Except Code ZK4 (Mixto)

Model 447.7

With Code EN7 (Audio 15)

With Code JW5 (Lane keeping assist)

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Except Code ZK4 (Mixto)

Model 447.7

With Code EN7 (Audio 15)

With Code LG2 (LED Intelligent Light System)

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Except Code XM0 (Facelift)

Except Code ZK4 (Mixto)

Model 447.8

With Code EA1 (Audio 20 CD)

With Code W65 (Tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

Model 447.8

With Code EA1 (Audio 20 CD)

With Code W68 (EASY-PACK-tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

Model 447.8

With Code EA2 (COMAND Online with 6-disc DVD changer)

With Code W65 (Tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

Model 447.8

With Code EA2 (COMAND Online with 6-disc DVD changer)

With Code W68 (EASY-PACK-tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

Model 447.8

With Code EJ9 (COMAND Online)

With Code W65 (Tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

Model 447.8

With Code EJ9 (COMAND Online)

With Code W68 (EASY-PACK-tailgate)

Except Code JS1 (360° camera (SURROUND VIEW))

Except Code XM0 (Facelift)

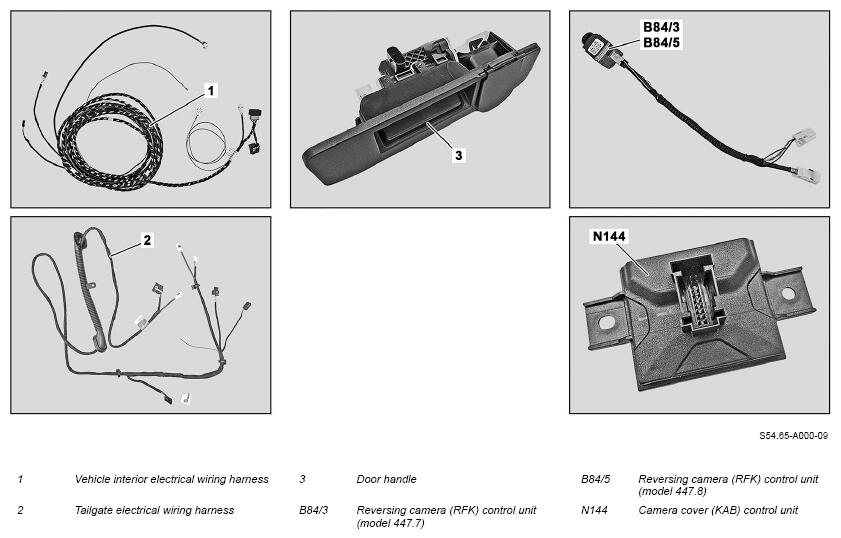

G16507139

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Detach ground line of on-board electrical system battery.
			AR54.10-S-0003E
2	Remove outer door handle (3) from tailgate.
		Removed door handle (3) is no longer required.	AR72.20-S-7320E
3.1	Remove vehicle tool kit mount.	All vehicles with a vehicle tool kit mount
			AR68.30-S-5020E
3.2	Remove storage compartment in right rear passenger compartment.	Model 447.7 except code E28 (Additional battery for retrofit consumers) except code Q50 (Removable trailer coupling ball head) except code SB6 (Comfort front passenger seat, rotatable) except code ZG2 (Permanent all-wheel drive) model 447.8 except code E65 (Burmester surround sound system) except code Q50 (Removable trailer coupling ball head) except code SB6 (Comfort front passenger seat, rotatable) except code W68 (Electric power tailgate) except code ZG2 (Permanent all-wheel drive) except code ZK7 (MARCO POLO equipment line)
			AR68.00-S-0009E
3.3	Remove rear right side trim in rear passenger compartment.	Model 447.7 with code ZG2 (Permanent all-wheel drive) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Comfort front passenger seat, rotatable) except code Y36 (Jack) model 447.8 with code ZK7 (MARCO POLO equipment line) except code RR6 (Spare wheel with jack) except code Y36 (Jack)
		Model 447.7 with code ZG2 (All-wheel drive, permanent) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Comfort front passenger seat, swiveling) except code Y36 (Jack)	AR68.30-S-1206E
		Model 447.8 with code ZK7 (MARCO POLO equipment line) except code RR6 (Spare wheel with jack) except code Y36 (Jack)	AR68.30-S-1207E
4	Remove roof stowage box in rear end.
		Model 447.8 with code ZK7 (MARCO POLO equipment line)	AR68.00-S-2000E
5	Remove rear bumper.
			AR88.20-S-2200E
6	Remove door sill panel at right sliding door.
			AR68.30-S-1312E
7	Remove lower B-pillar trim at right.
			AR68.30-S-4700E
8	Remove front door sill panel at right.
			AR68.30-S-4100E
9	Remove trim in right footwell.
			AR68.30-S-4030E
10	Remove right cover below the instrument panel.
		Model 447.7 with code LC7 (Front footwell illumination) Model 447.8	AR68.10-S-1520E
11.1	Remove radio (Audio) (N87/2).	Model 447.7 with code EN7 (Audio 15) except code XM0 (Facelift) except code XM7 (Facelift II)
		Do not separate electrical connections.	AR82.60-S-7502E
11.2	Remove radio (Audio/COMAND) (N87/6).	Model 447.8 with code EA1 (Audio 20 CD) except code XM0 (Facelift) except code XM7 (Facelift II), Model 447.8 with code EA2 (COMAND Online with DVD changer, 6-disk) except code XM0 (Facelift) except code XM7 (Facelift II), Model 447.8 with code EA2 (COMAND Online with DVD changer, 6-disk) except code XM0 (Facelift) except code XM7 (Facelift II)
			AR82.60-S-7502EA
		Do not separate electrical connections.
12	Remove left cover under instrument panel.
		Model 447.7## 2# with code LC7 (Front footwell illumination) Model 447.8	AR68.10-S-1500E
	Install
13	Retrofit tailgate electrical wiring harness (2).		AN54.65-S-0030-10E
		Long wedge	Fig 1
14	Retrofit vehicle interior electrical wiring harness (1).	Model 447.7## 1# Model 447.8## 1#	AN54.65-S-0030-09E
		Model 447.7## 2# Model 447.8## 2#	AN54.65-S-0030-09ER
	Assignment of right footwell firewall fuse and relay module	Model 447.7 except code XM0 (Facelift) Model 447.8 except code XM0 (Facelift)	GF54.15-S-1256-39TRA
		M8	*BA00.10-Z-1003-01KOA
		Long wedge	Fig 1
15	Retrofit camera cover (KAB) control unit (N144).	The camera cover (KAB) control unit (N144) is used for controlling the reversing camera.	AN54.65-S-0030-01E
16.1	Install reversing camera (RFK) control unit (B84/3) into door handle (3) included with parts kit.	Model 447.7 The reversing camera is integrated into the reversing camera (RFK) control unit (B84/3).	AN54.65-S-0030-12E
16.2	Install reversing camera (RFK) control unit (B84/5) into door handle (3) included with parts kit.	Model 447.8 The reversing camera is integrated into the reversing camera (RFK) control unit (B84/5).	AN54.65-S-0030-12E
17	Install left cover below the instrument panel.
		Model 447.7## 2# with code LC7 (Front footwell illumination) Model 447.8	AR68.10-S-1500E
18.1	Install radio (audio) (N87/2).	Model 447.7 with code EN7 (Audio 15) except code XM0 (Facelift) except code XM7 (Facelift II)
			AR82.60-S-7502E
18.2	Install radio (Audio/COMAND) (N87/6).	Model 447.8 with code EA1 (Audio 20 CD) except code XM0 (Facelift) except code XM7 (Facelift II), Model 447.8 with code EA2 (COMAND Online with DVD changer, 6-disk) except code XM0 (Facelift) except code XM7 (Facelift II), Model 447.8 with code EA2 (COMAND Online with DVD changer, 6-disk) except code XM0 (Facelift) except code XM7 (Facelift II)
			AR82.60-S-7502EA
19	Install right cover below instrument panel.
		Model 447.7 with code LC7 (Front footwell illumination) Model 447.8	AR68.10-S-1520E
20	Install trim in right footwell.
			AR68.30-S-4030E
21	Install front door sill panel at right.
			AR68.30-S-4100E
22	Install lower B-pillar trim at right.
			AR68.30-S-4700E
23	Install door sill panel at right sliding door.
			AR68.30-S-1312E
24	Install rear bumper.
			AR88.20-S-2200E
25	Install roof stowage box in rear end.
		Model 447.8 with code ZK7 (MARCO POLO equipment line)	AR68.00-S-2000E
26.1	Install vehicle tool kit mount.	All vehicles with vehicle tool kit mount
			AR68.30-S-5020E
26.2	Install storage compartment in right rear passenger compartment.	Model 447.7 except code E28 (Additional battery for retrofit consumers) except code Q50 (Trailer coupling with removable ball head) except code SB6 (Comfort front passenger seat, rotatable) except code ZG2 (Permanent all-wheel drive) Model 447.8 except code E65 (Burmester surround sound system) except code Q50 (Trailer coupling with removable ball head) except code SB6 (Comfort front passenger seat, rotatable) except code W68 (EASY-PACK tailgate) except code ZG2 (Permanent all-wheel drive) except code ZK7 (MARCO POLO equipment line)
			AR68.00-S-0009E
26.3	Install rear right side trim in rear passenger compartment.	Model 447.7 with code ZG2 (Permanent all-wheel drive) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Comfort front passenger seat, rotatable) except code Y36 (Jack) model 447.8 with code ZK7 (MARCO POLO equipment line) except code RR6 (Spare wheel with jack) except code Y36 (Jack)
		Model 447.7 with code ZG2 (All-wheel drive, permanent) except code E28 (Additional battery for retrofit consumers) except code RR6 (Spare wheel with jack) except code SB6 (Comfort front passenger seat, swiveling) except code Y36 (Jack)	AR68.30-S-1206E
		Model 447.8 with code ZK7 (MARCO POLO equipment line) except code RR6 (Spare wheel with jack) except code Y36 (Jack)	AR68.30-S-1207E
27	Install outer door handle (3) onto tailgate.
		Use door handle (3) included in parts kit.	AR72.20-S-7320E
28	Attach ground line of on-board electrical system battery.
			AR54.10-S-0003E
29	Supplement special equipment in Vehicle Documentation System (VeDoc).	Designation of corresponding special equipment: Code FR8 (Reversing camera).
30	Perform SCN coding on electronic ignition lock (EZS) control unit (N73).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove diagnostic system.	AR54.21-S-0015E
31.1	Perform SCN coding on radio (audio) (N87/2).	Model 447.7
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".	AR54.21-S-0015E
		Do not yet remove diagnostic system.
31.2	Perform SCN coding on radio (Audio/COMAND) (N87/6).	Model 447.8
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove diagnostic system.	AR54.21-S-0015E
32	Perform SCN coding on gateway for user interface CAN (N93/4).
		Model 447.8 Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove diagnostic system.	AR54.21-S-0015E
33	Perform SCN coding on camera cover (KAB) control unit (N144).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove diagnostic system.	AR54.21-S-0015E
34.1	Commission reversing camera (RFK) control unit (B84/3).	Model 447.7
	Connect STAR DIAGNOSIS and read out fault memory	In the "Control unit adaptations" menu item, follow the "Commission previously-installed control unit" instructions.	AD00.00-S-2000-04E
34.2	Perform commissioning on reversing camera (RFK) control unit (B84/5).	Model 447.8
	Connect STAR DIAGNOSIS and read out fault memory	In the "Control unit adaptations" menu item, follow the "Commission previously-installed control unit" instructions.	AD00.00-S-2000-04E
35	Remove diagnostic system.
	Check
36	Perform function check of reversing camera.

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			8.8	10.9
BA00.10-Z-1003-01KOA	M8	Galvanized	Nm	23	32
BA00.10-Z-1003-01KOA	M8	Phosphated	Nm	21	29

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			12.9
BA00.10-Z-1003-01KOA	M8	Galvanized	Nm	38
BA00.10-Z-1003-01KOA	M8	Phosphated	Nm	36

Fig 1: Identifying Long Wedge (115 589 03 59 00)

G07070400

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG99	Reversing camera, delivery package	1
