Remove/Install Rear Side Paneling - AR68.30-S-1206E

Model 447.7

With Code V23 (Interior trim, premium version)

Model 447.8

Except Code ZK7 (Equipment line MARCO POLO)

Model 448.7

With Code V23 (Interior trim, premium version)

Model 448.8

Courtesy of MERCEDES-BENZ USA

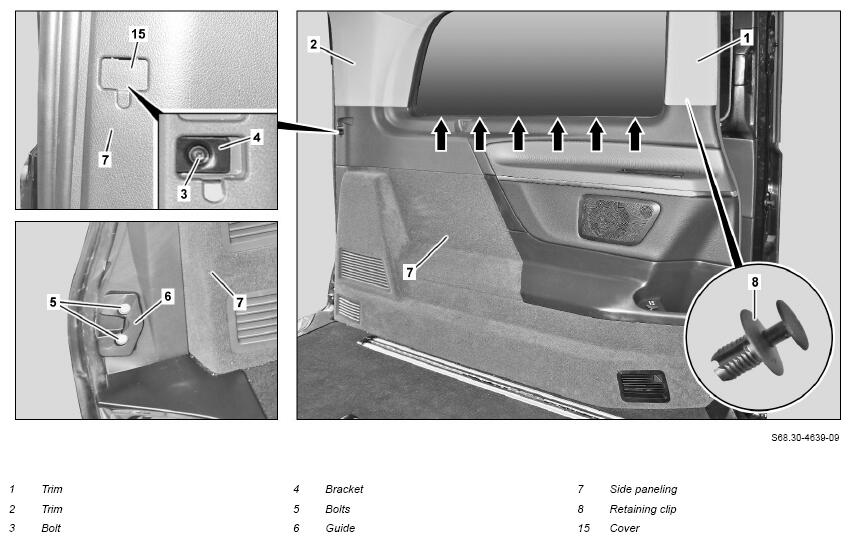

Shown On left side of vehicle on model 447 With Code W65 (liftgate)

Courtesy of MERCEDES-BENZ USA

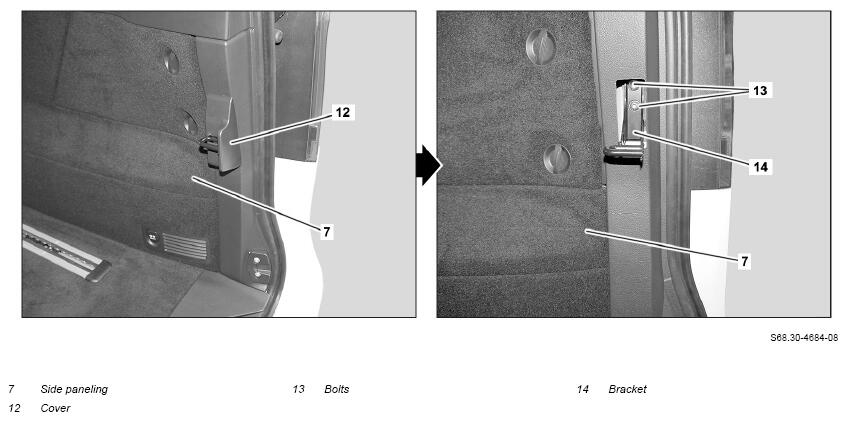

Model 447.7 With Code ZH6 (Marco Polo ACTIVITY), model 447.8 With Code V9B (FUN 2 package: Sleep), shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

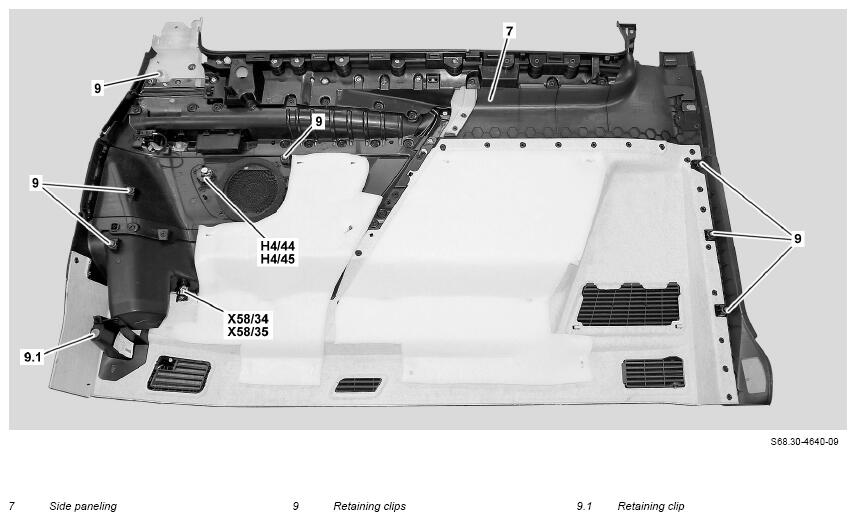

Shown On left side paneling (7) on model 447 With Code E65 (Burmester surround sound system), code EL9 (two-way speaker system, front and rear) and code ES3 (sockets 12V for rear right and left rows of seats)

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove load compartment shelf.	Model 447.7 with code V23 (Interior trim, premium version) with code YG4 (Comfort load compartment split) Model 447.8 with code YG4 (Comfort load compartment split) except code ZK7 (Equipment line MARCO POLO)	AR68.80-S-5805E
2	Remove passenger bench seat on 2nd row.	Model 447.7 with code V23 (Interior trim, premium version) with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code V9B (FUN 2 package: Sleeper) except code ZK7 (Equipment line MARCO POLO)	AR91.21-S-4420E
3	Remove passenger bench seat on 1st or 2nd or 3rd row.	Model 447.7 with code U60 (passenger compartment seats, 2-passenger seat bench, 1st row), model 447.7 with code U61 (2-passenger seat bench, 2nd row), model 447.7 with code U63 (passenger compartment seats, 3-passenger seat bench, 2nd row), model 447.7, 448.7 with code U64 (passenger compartment seats, 3-passenger seat bench, 3rd row), model 447.7 with code U65 (passenger compartment seats, 3-passenger seat bench, 1st row), model 447.7 with code U71 (3-passenger seat bench, 1st row of seats in rear with folding outer seat	AR91.21-S-4425E
		Model 447.7, 448.7 with code UR8 (passenger compartment bench seat, 2-passenger seat bench, Comfort 2nd row), model 447.7/8, 448.8 with code US1 (comfort 2-passenger seat bench, 1st rear row), model 447.7/8, 448.7 with code US4 (comfort 3-passenger seat bench, 1st row, folding outer seat), model 447.7/8, 448 with code	AR91.21-S-4425EE
		US5 (comfort 3-passenger seat bench, 2nd row, folding outer seat)
4	Remove corresponding passenger seats.	Model 447.8, 448 with code US6 (individual seat, 1st rear row left) Model 447.8, 448 with code US7 (individual seat, 1st rear row right) Model 447.8, 448.8 with code US8 (individual seat, 2nd rear row left) Model 447.8, 448.8 with code US9 (individual seat, 2nd rear row right	AR91.21-S-4460E
5	Remove trim (1) on C-pillar.		AR68.30-S-4490E
6	Remove trim (2) from the D-pillar.		AR68.30-S-4495E
7	Unclip cover (15) from side trim (7).	Clip remover	Fig 2
8	Remove bolt (3) and remove holder (4).
9	Mark installation position of guide (6).	Model 447.7 with code V23 (Interior trim, premium version) with code W65 (Tailgate) Model 447.8 except code ZK7 (Equipment line MARCO POLO) Model 448.7 with code V23 (Interior trim, premium version) Model 448.8
10	Unscrew bolts (5) and remove guide (6).	Model 447.7 with code V23 (Interior trim, premium version) with code W65 (Tailgate) Model 447.8 except code ZK7 (Equipment line MARCO POLO) Model 448.7 with code V23 (Interior trim, premium version) Model 448.8 : Observe markings for installation position of guide (6). Bolt, guide to body	*BA72.20-Z-1008-03KOJ
11	Unclip and remove cover (12).	Model 447.7 with code V23 (Interior trim, premium version) with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code V9B (FUN 2 package: Sleeper) except code ZK7 (Equipment line MARCO POLO) : Ensure that cover (12) is seated properly.
12	Unscrew bolts (13) and remove holder (14).	Model 447.7 with code V23 (Interior trim, premium version) with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code V9B (FUN 2 package: Sleeper) except code ZK7 (Equipment line MARCO POLO)
13	Remove retaining clip (8).
14	Release side trim (7) in area of retaining clips (9, 9.1).	: Check retaining clips (9, 9.1) and remove foam padding from retaining clip (9.1). If retaining clips (9, 9.1) are damaged: ↓ Replace corresponding retaining clips (9, 9.1).

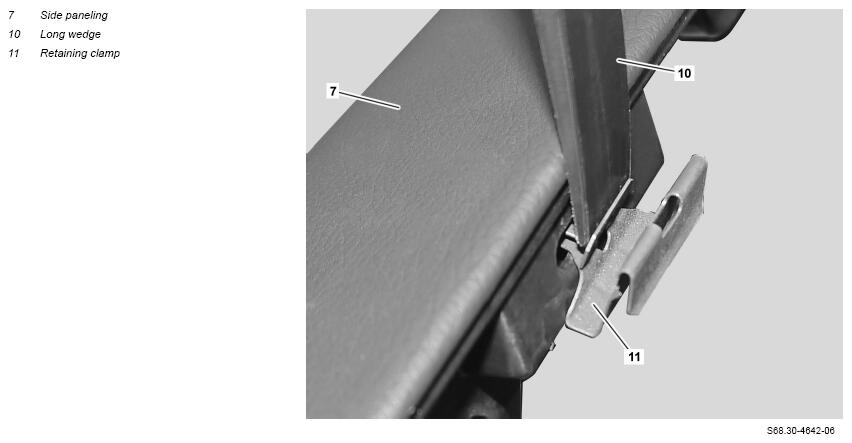

15	Insert long wedge (10) between side trim (7) and window frame as shown (arrows) and unclip retaining clamps (11).	Carefully detach side paneling (7). Otherwise, side paneling (7) and retaining clips (11) may be damaged. : Check retaining clips (11). Ensure that retaining clips (11) are seated correctly on window frame rabbet. Long wedge	Fig 1
		If retaining clips (11) are damaged: ↓ Replace corresponding retaining clips (11).
16	Remove side trim (7) until electrical connectors on rear side are accessible.
17	Release and disconnect electrical connectors on rear side.	The number of electrical connectors varies depending on equipment installed.
18	Remove side trim (7).
19	Reconfigure detachable parts of side trim (7).	When replacing side paneling (7).
20	Check for presence of bore for mount of 12 V socket on new side trim (7).	Model 447.7 with code ES2 (12 V socket for trunk/load compartment); model 447.8 with code ES2 (12 V socket for trunk/load compartment); model 448.7 with code ES2 (12 V socket for trunk/load compartment); model 448.8 with code ES2 (12 V socket for trunk/load compartment) When right side trim (7) is being replaced. if no bore is present, ↓ drill hole in side trim (7).	AR68.30-S-1213-01E
21	Install in the reverse order.
	Check
22	Perform function check on all electrical component parts in repair area.

Number	Designation		Model 447, 448
BA72.20-Z-1008-03KOJ	Bolt, guide to body	Nm	8
