Retrofit Reversing Camera In Door Handle - AN54.65-S-0030-12E

Model 447

With Code W65 (Tailgate)

Model 447.8

With Code W68 (EASY-PACK-tailgate)

The reversing camera is integrated in the reversing camera control unit (B84/3) or reversing camera control unit (B84/5).

Courtesy of MERCEDES-BENZ USA

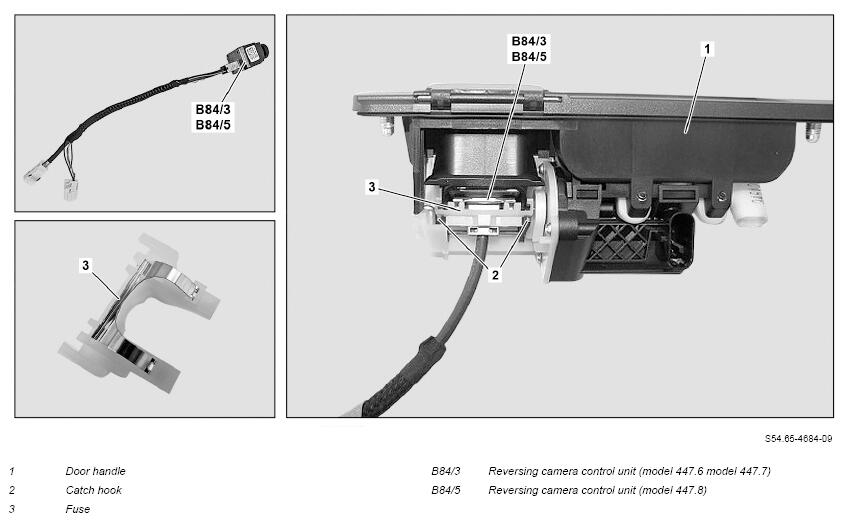

1. Install reversing camera control unit (B84/3) or reversing camera control unit (B84/5) as shown in door handle (1).

   Make sure that the reversing camera control unit (B84/3) or reversing camera control unit (B84/5) is seated correctly in the door handle (1).

2. Install retainer (3) in door handle (1).

   When doing so, push in the retainer (3) between the door handle (1) and reversing camera control unit (B84/3) or reversing camera control unit (B84/5) until the catch hooks (2) engage.
