Remove/Install Stowage Compartment Under Trim In Right Of Rear Passenger Compartment - AR68.00-S-0009E
Model 447.7
With Code V23 (Interior trim, premium version)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code Q50 (Trailer coupling with removable ball-type head)
Except Code SB6 (Luxury co-driver's seat, pivoting)
Except Code ZG2 (Permanent all-wheel drive)
Model 447.8
Except Code E65 (Burmester® surround sound system)
Except Code Q50 (Trailer coupling with removable ball-type head)
Except Code SB6 (Luxury co-driver's seat, pivoting)
Except Code W68 (EASY-PACK-tailgate)
Except Code ZG2 (Permanent all-wheel drive)
Except Code ZK7 (Equipment line MARCO POLO)
Model 448.7
With Code V23 (Interior trim, premium version)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

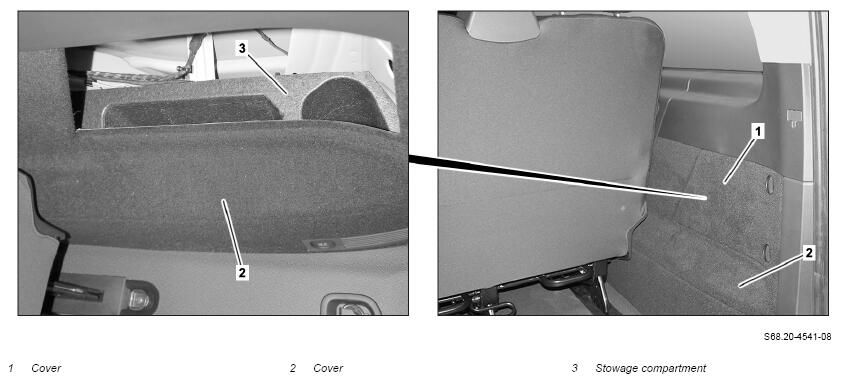

| 1 | Open cover (1) | ||
| 2 | Remove vehicle jack from stowage compartment (3) | If installed. | |
| 3 | Remove paneling (2) in right rear | AR68.30-S-1206E | |
| 4 | Remove stowage compartment (3) from side wall | ||
| 5 | Install in the reverse order |
