Connect Star Diagnosis And Read Out Fault Memory - AD00.00-S-2000-04E

Model 447, 448

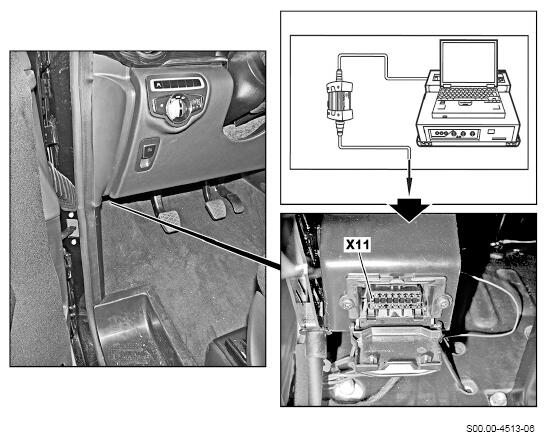

1. Connect STAR DIAGNOSIS to diagnostic connector (X11).
2. Start "XENTRY".
3. Switch on ignition.
4. Select vehicle brand "Mercedes".
5. Select "Vans" category.
6. Select "VITO (447, 448)" or "V-Class (447, 448)" model series.
7. Operate "Xentry Diagnostics" switching panel.

   All required information is automatically read out through this. Read and observe notes.

   Courtesy of MERCEDES-BENZ USA

8. Follow the instructions for continuing the read-out.
9. Operate "Start quick test" switching panel in the "Control unit overview tab".

   The quick test is performed automatically. Any existing fault codes are read out and can then be rectified.
