Disconnect/Connect Battery Ground Line - AR54.10-S-0003E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

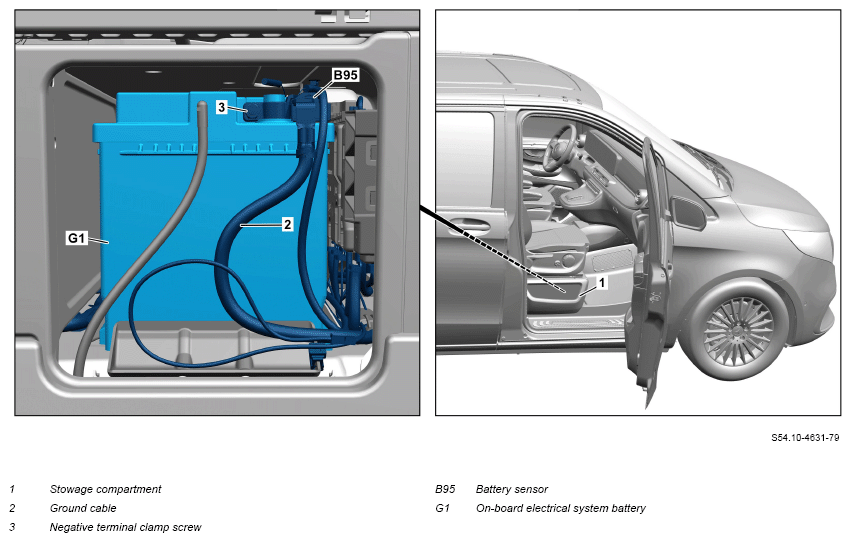

Shown on model 447.8 With Code XM7 (Facelift II)

Courtesy of MERCEDES-BENZ USA

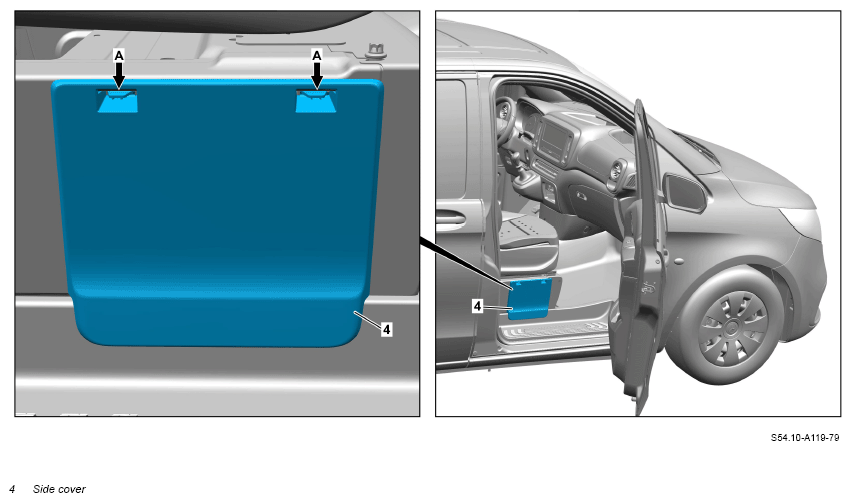

Shown on model 447.7 With Code XM7 (Facelift II)

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
Notice	Notes on battery		AH54.10-P-0001-01A
	Disconnect, connect
1	Disconnect charging cable connector of high-voltage on-board electrical system and wait 30 s until power-down is complete.	Model 447 with engine 780 If high-voltage on-board electrical system is charged via a charging cable connector.
2	Disconnect charger from on-board electrical system battery (G1).	When an external charger is connected.
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
4.1	Unclip storage compartment (1) at right seat box, starting at top, and remove.	Model 447.8, 448.8 Long wedge	Fig 1
4.2	Remove side cover (4) from right seat box.	Model 447.6/7, 448.7 To do so, release catch hooks (arrows A), tilt cover forward and guide out.
5	Detach negative pole clamp screw (3) and remove ground line (2) from on-board electrical system battery (G1).	Do not pull on the ground line (2). Otherwise, the battery sensor (B95) may be damaged. Bolt, ground line to negative terminal for on-board electrical system battery/additional battery	*BA54.10-Z-1001-01KOF
	Check
6	Check for absence of voltage on 12 V on-board electrical system.	Model 447 with code ME0 (Electric motor 85 kW) Model 447 with code ME4 (Electric motor 145 kW)
	Service Information: Determine absence of voltage of 12 V on-board electrical system after removing the ground or positive line of the on-board electrical system battery		SI54.10-S-0072A
	000 588 07 19 00 Measuring instrument	The engine hood must be closed. Observe the Service Information.	WS54.00-Z-3005KOB
7	Detach ground line from auxiliary battery.	Model 447.6/7 with code E28 (Additional battery for retrofitted consumers) Model 447.7/8 with code EE8 (Battery 12V 100 Ah) Model 447.7/8 with code EE9 (12 V/80 Ah additional battery) When working on the Supplemental Restraint System (SRS).	AR54.10-S-0004E
8	Disconnect ground line of support battery.	When working on the Supplemental Restraint System (SRS). Model 447 with code MJ8 (ECO start/stop function) except code D50 (Full-length partition) except code D51 (Entire partition with 1 window) except code S23 (Co-driver's seat double seat) Model 448	AR54.10-S-0111E
		Model 447 with code D50 (Full-length partition) with code MJ8 (ECO start/stop function) Model 447 with code D51 (Entire partition with 1 window) with code MJ8 (ECO start/stop function) Model 447 with code MJ8 (ECO start/stop function) with code S23 (Co-driver's seat double seat)	AR54.10-S-0111EE
9	Disconnect ground line of Emergency-P battery.	When working on the Supplemental Restraint System (SRS). Model 447 with code G42 (7G-TRONIC PLUS) except code MJ8 (ECO start/stop function, Model 447 with code G43 (9G-TRONIC) except code MJ8 (ECO start/stop function, Model 447 with engine 780	AR54.10-S-0120E
10	Connect in reverse order.
11	Set time and date in instrument cluster or in driver display.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
