Remove/Install Paneling On B-Pillar - AR68.30-S-4700E

Model 447, 448

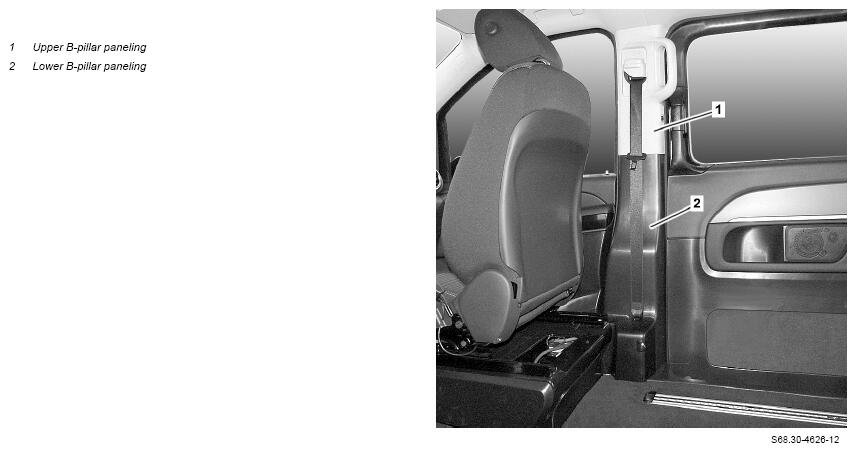

Shown On model 447.8 on right side of vehicle With Code T74 (Grab handle for entry) and code T55 (Electrical actuation for right sliding door)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1.1	Move left and/or right front seat and associated seat backrest forward.	Model 447 except code S23 (Co-driver's seat double seat) Model 448
1.2	Move driver's seat and associated seat backrest forward.	Model 447 with code S23 (Co-driver's seat double seat) When removing left upper B-pillar paneling (1) and left lower B-pillar paneling (2).
1.3	Remove front passenger bench seat.	Model 447 with code S23 (Co-driver's seat double seat) When removing right upper B-pillar paneling (1) and right lower B-pillar paneling (2).
2	Remove upper B-pillar trim (1).		AR68.30-S-4700-01E
		Screw/bolt, tie-down eye to body	*BA68.50-Z-1001-03KOJ
		Bolt, belt end fitting to B-pillar	*BA91.40-Z-1002-01KOM
		Long wedge	Fig 2
3	Prepare left upper B-pillar trim (1) for installation.	Model 447.7 with code ZH6 (Marco Polo ACTIVITY) except code T19 (Sliding door left) When replacing left upper B-pillar paneling (1).	AR68.30-S-0111-01E
4	Remove lower B-pillar trim (2).		AR68.30-S-4700-02E
		Mounting wedge	Fig 1
5	Prepare right lower B-pillar trim (2) for installation.	Model 447.8 with code ZK7 (Equipment line MARCO POLO) When replacing right lower B-pillar paneling (2).	AR68.30-S-4700-03E
6	Install in the reverse order.
	Check
7	Check seat belt height adjuster and seat belt for proper function and ease of movement.

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
