Remove/Install Cover Below Instrument Panel (Right) - AR68.10-S-1520E

Model 447.6/7

With Code LC7 (Illumination for front footwell)

Model 447.8, 448

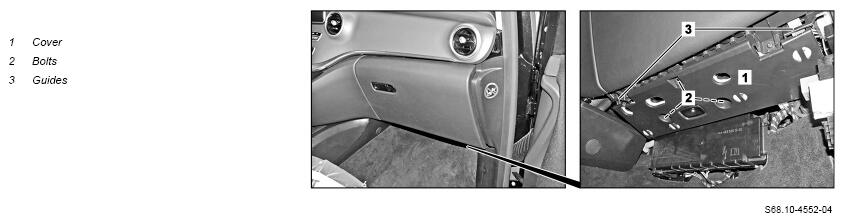

Shown On model 447.7 Except Code XM7 (facelift II)

G16488169

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove right trim in footwell.		AR68.30-S-4030E
2	Remove screws (2).
3	Remove cover (1).	To do so, remove the cover (1) from the guides (3).
4	Remove cover (1).	To do so, release and disconnect the electrical connector for the front footwell lighting.
5	Install in the reverse order.
	Check
6	Test the function of the front footwell lighting.
