Retrofit Backup Camera Wiring Harness In Vehicle Interior - AN54.65-S-0030-09E

Model 447.7## 1#

With Code V23 (Interior trim, premium version)

With Code W65 (Tailgate)

Except Code D57 (Full-width partition wall on C-pillar with window)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Model 447.8## 1#

With Code W65 (Tailgate)

Model 447.8## 1#

With Code W68 (EASY-PACK-tailgate)

	Assignment of right footwell firewall fuse and relay module	Model 447.7## 1# except code XM0 (Facelift) Model 447.8## 1# except code XM0 (Facelift)	GF54.15-S-1256-39TRA
	Assignment of right footwell firewall fuse and relay module	Model 447.7## 1# with code XM0 (Facelift) Model 447.8## 1# with code XM0 (Facelift)	GF54.15-S-1256-39TRF

Fig 1: Identifying Long Wedge (115 589 03 59 00)

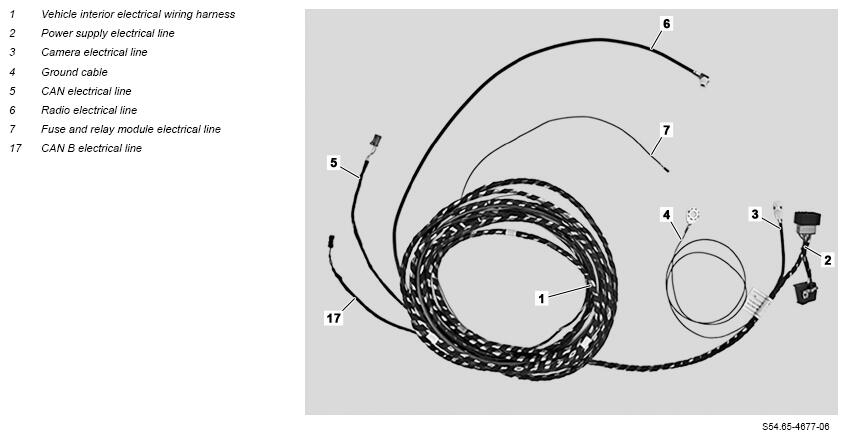

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

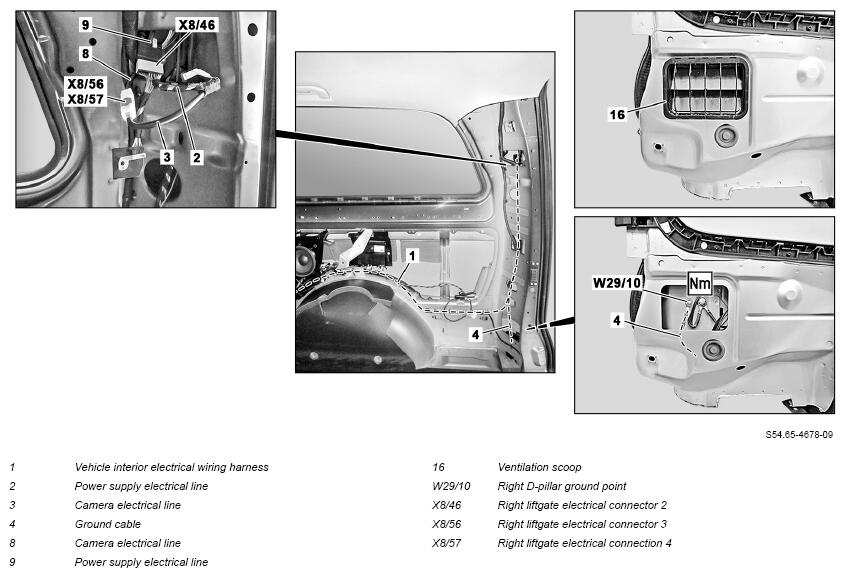

1. Route vehicle interior electrical wiring harness (1) as shown from right D-pillar to bottom of sliding door entrance area.

   Do not kink the vehicle interior electrical wiring harness (1) and ensure it is routed without chafing.

   This prevents damage.

2. Fasten vehicle interior electrical wiring harness (1) in sections using cable ties to factory-installed electrical wiring harness.
3. Remove ventilation scoop (16) using long wedge.
4. Unscrew nut from right D-pillar ground point (W29/10).
5. Route ground line (4) from vehicle interior through cable opening in right D-pillar to outside.

   Do not kink the ground line (4) and ensure it is routed without chafing.

   This prevents damage.

6. Attach ground line (4) to right D-pillar ground point (W29/10).
7. Secure ground line (4) to right D-pillar ground point (W29/10) using nut .
8. Install ventilation scoop (16).
9. Attach power supply electrical line (2) of vehicle interior electrical wiring harness (1) to power supply electrical line (9) of liftgate electrical wiring harness.

   This creates the right tailgate electrical connection 2 (X8/46).

10. Attach camera electrical line (3) of vehicle interior electrical wiring harness (1) to camera electrical line (8) of liftgate electrical wiring harness.

    Model 447.8

    This creates the right tailgate electrical connection 3 (X8/56).

    Model 447.7

    This connects right liftgate electrical connection 4 (X8/57).

    Courtesy of MERCEDES-BENZ USA

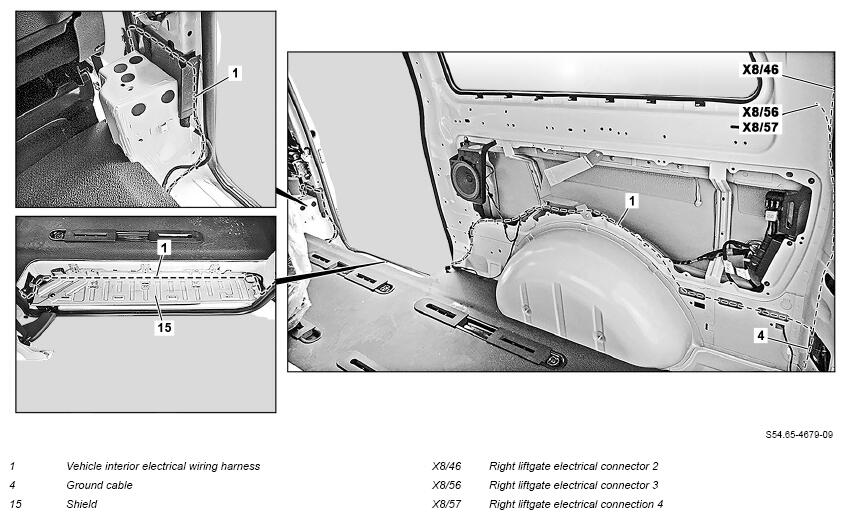

11. Remove shield (15) from sliding door entrance.
12. Route vehicle interior electrical wiring harness (1) as shown from right D-pillar to bottom of passenger side entrance area.

    Do not kink the vehicle interior electrical wiring harness (1) and ensure it is routed without chafing.

    This prevents damage.

13. Fasten vehicle interior electrical wiring harness (1) in sections using cable ties to factory-installed electrical wiring harness.
14. Install shield (15) on sliding door entrance.

    Courtesy of MERCEDES-BENZ USA

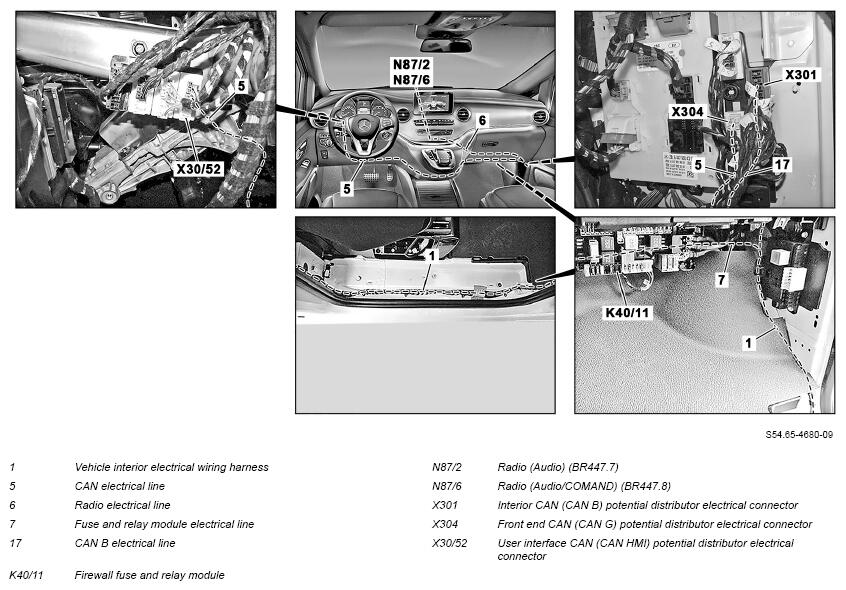

15. Route vehicle interior electrical wiring harness (1) as shown in passenger-side entrance area.

    Do not kink the vehicle interior electrical wiring harness (1) and ensure it is routed without chafing.

    This prevents damage.

16. Fasten vehicle interior electrical wiring harness (1) in sections using cable ties to factory-installed electrical wiring harness.
17. Install fuse and relay module electrical line (7) in firewall fuse and relay module (K40/11).
18. Model 447.8

    Route CAN electrical line (5) as shown from passenger-side entrance area to user interface CAN (CAN HMI) potential distributor electrical connector (X30/52) in instrument panel.

    Do not kink the CAN electrical line (5) and ensure that it is routed without chafing.

    This prevents damage.

19. Model 447.8

    Secure CAN electrical line (5) section by section to factory-installed electrical wiring harness using cable ties.

20. 1. Model 447.8

       Install CAN electrical line (5) in user interface CAN (CAN HMI) potential distributor electrical connector (X30/52).

    2. Model 447.7

       Install CAN electrical line (5) in front end CAN (CAN G) potential distributor electrical connector (X304).

21. Install CAN electrical line (17) in interior CAN (CAN B) potential distributor electrical connector (X301).
22. Route radio electrical line (6) of vehicle interior electrical wiring harness (1) as shown to radio (Audio) (N87/2) or radio (Audio/COMAND) (N87/6).

    Do not kink the radio electrical line (6) and ensure it is routed without chafing.

    This prevents damage.

23. Fasten radio electrical line (6) in sections using cable ties to factory-installed electrical wiring harness.
24. Attach radio electrical line (6) to radio (Audio) (N87/2) or radio (Audio/COMAND) (N87/6).
