Remove/Install Door Sill Molding - AR68.30-S-4100E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

Shown On model 447.8 With Code C74 (Entry "Mercedes-Benz" lettering illuminated)

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

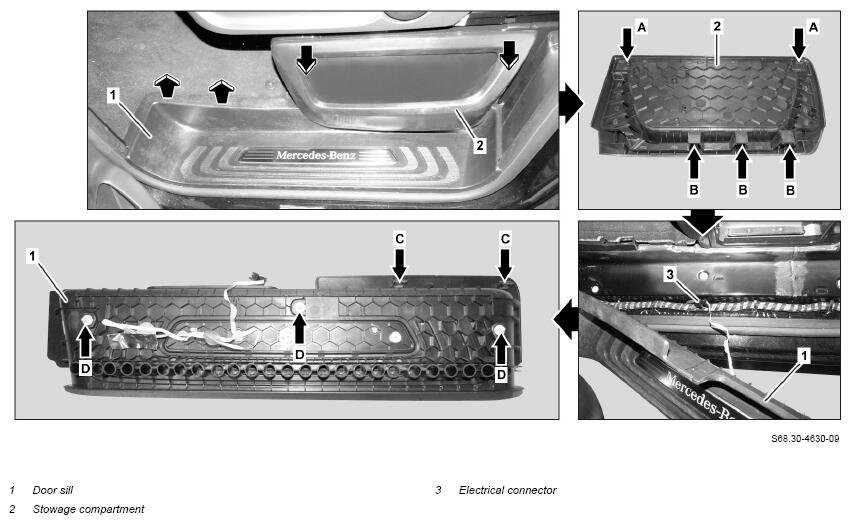

1.1	Unclip stowage compartment (2) from seat base, pivot upward toward outside and remove	Model 447.8, 448.8 Ensure that pins (arrows A) and brackets (arrows B) on stowage compartment (2) are seated correctly in seat base. Long wedge	Fig 1
1.2	Remove outer cover from seat base	Model 447.6/7, 448.7
2	Unclip door sill (1) in area of guides (arrows C) in direction of arrow
3	Unclip door sill (1) in area of retaining clips (arrows D)
4.1	Carefully pivot door sill (1) toward front and remove	Model 447.6/7, 448.7 Model 447.8 except code C74 (Illuminated Mercedes-Benz lettering on door sill) Ensure that door sill (1) is seated correctly. Long wedge	Fig 1
4.2	Carefully pivot door sill (1) toward front until electrical connectors (3) is accessible	Model 447.8 with code C74 (Illuminated Mercedes-Benz lettering on door sill) Model 448.8 Ensure that wiring harness and electrical connector (3) are routed correctly. Ensure that door sill (1) is seated correctly. Long wedge	Fig 1
5	Disconnect electrical connector (3) and remove door sill (1)	Model 447.8 with code C74 (Illuminated Mercedes-Benz lettering on door sill)
6	Install in the reverse order
	Check
7	Check whether illumination of door sill (1) functions properly	Model 447.8 with code C74 (Illuminated Mercedes-Benz lettering on door sill) Model 448.8

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
