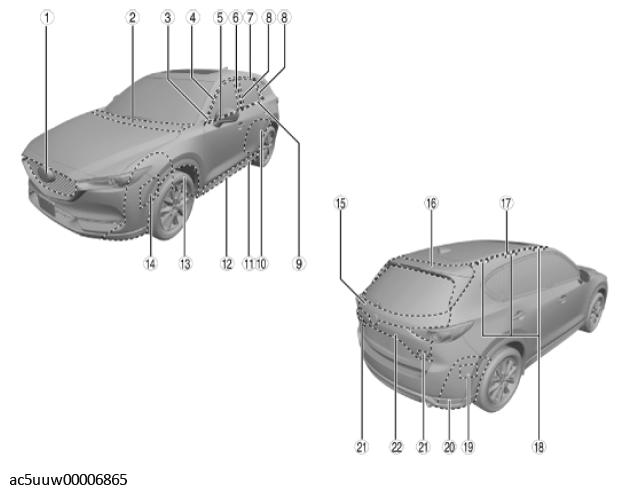

| 1 |
Radiator grille
(See RADIATOR GRILLE REMOVAL/INSTALLATION .)
(See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .) |
| 2 |
Cowl grille
(See COWL GRILLE REMOVAL/INSTALLATION .) |
| 3 |
Sail garnish
(See SAIL GARNISH REMOVAL/INSTALLATION .) |
| 4 |
Front sash molding
(See FRONT SASH MOLDING REMOVAL )
(See FRONT SASH MOLDING INSTALLATION .) |
| 5 |
Front beltline molding
(See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .) |
| 6 |
Front door garnish
(See FRONT DOOR GARNISH REMOVAL/INSTALLATION .) |
| 7 |
Rear sash molding
(See REAR SASH MOLDING REMOVAL .)
(See REAR SASH MOLDING INSTALLATION .) |
| 8 |
Rear door garnish
(See REAR DOOR GARNISH REMOVAL/INSTALLATION .) |
| 9 |
Rear beltline molding
(See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .) |
| 10 |
Rear mudguard
(See MUDGUARD REMOVAL/INSTALLATION .) |
| 11 |
Side garnish (rear)
(See SIDE GARNISH REMOVAL/INSTALLATION .) |
| 12 |
Side garnish (front)
(See SIDE GARNISH REMOVAL/INSTALLATION .) |
| 13 |
Front mudguard
(See MUDGUARD REMOVAL/INSTALLATION .) |
| 14 |
Front splash shield
(See SPLASH SHIELD REMOVAL/INSTALLATION .) |
| 15 |
Liftgate garnish
(See LIFTGATE GARNISH REMOVAL/INSTALLATION .) |
| 16 |
Rear spoiler
(See REAR SPOILER REMOVAL/INSTALLATION .) |
| 17 |
Roof molding
(See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
(See ROOF MOLDING INSTALLATION .) |
| 18 |
Roof carrier bracket
(See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .) |
| 19 |
Extractor chamber
(See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .) |
| 20 |
Rear splash shield
(See SPLASH SHIELD REMOVAL/INSTALLATION .) |
| 21 |
Ornament
(See ORNAMENT INSTALLATION .) |
| 22 |
Rear finisher
(See REAR FINISHER REMOVAL/INSTALLATION .) |
