FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Remove the cup bolts.

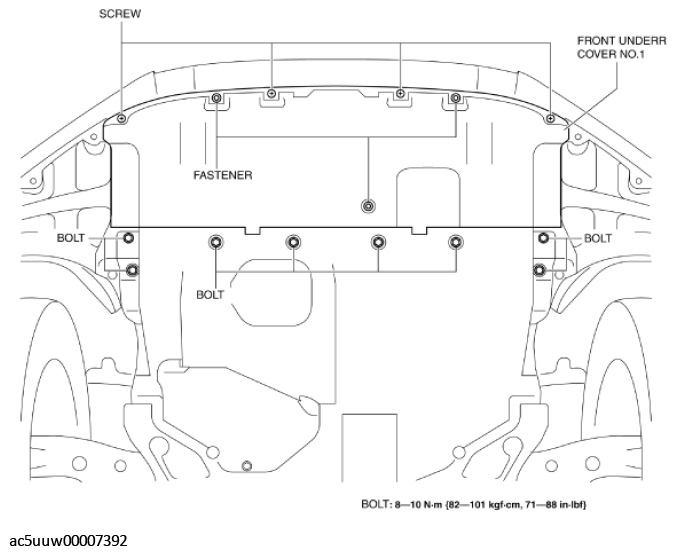

    Fig 1: Removing Front Under Cover No. 1 Cup Bolts
    G11427568Courtesy of MAZDA MOTORS CORP.
  2. Remove the screws.
  3. Remove the fasteners.
  4. Remove the front under cover No. 1.
  5. Install in the reverse order of removal.
