Extractor Chamber Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
2. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
Insert a tape-wrapped flat head screwdriver shown in the figure and remove clips in the direction of arrow (1).

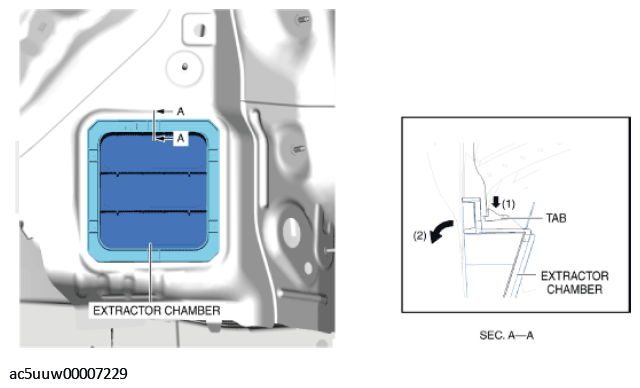

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Extractor Chamber
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
