Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the fastener.

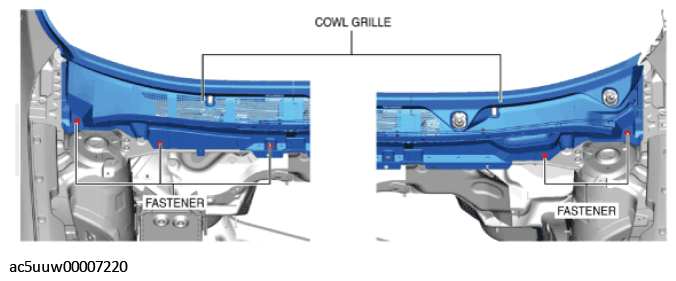

    Fig 1: Locating Cowl Grille Fastener
    G11427548Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  4. Pull the cowl grille in the direction of the arrows shown in the figure and detach the guides from the windshield.

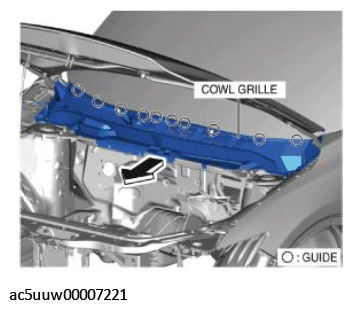

    Fig 2: Pulling Cowl Grille
    G11427549Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
