Rear BELTLINE Molding Removal/Installation

CAUTION:

• Affix protective tape to the position shown in the figure

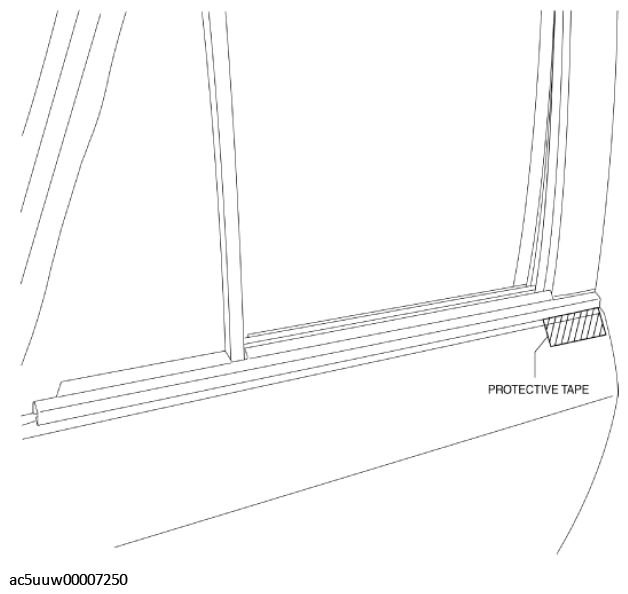

Fig 1: Affixing Protective Tape To Position

Courtesy of MAZDA MOTORS CORP.

1. Fully open the rear door glass.
2. Insert a tape-wrapped flathead screwdriver and then detach clips A in the direction of arrow (1) shown in the figure.

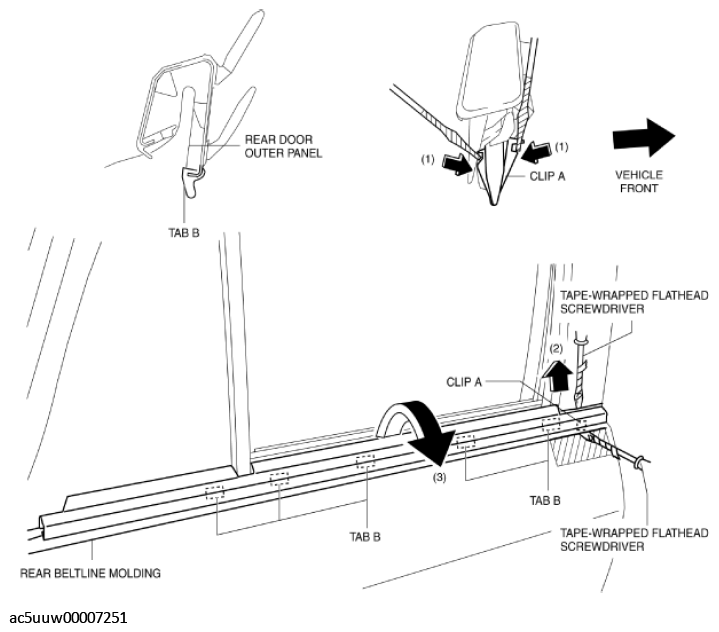

   Fig 2: Inserting Tape-Wrapped Flathead Screwdriver To Clips

   Courtesy of MAZDA MOTORS CORP.
3. Pull up the rear side of rear beltline molding in the direction of arrow (2) shown in the figure.
4. Rotate the front beltline molding in the direction of the arrow (3) shown in the figure and remove it while detaching tabs B.
5. Install in the reverse order of removal.
