Radiator Grille Removal/Installation

  1. Disconnect the negative battery cable.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the fastener.

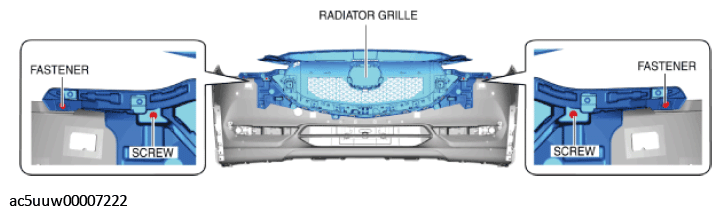

    Fig 1: Removing Radiator Grille Fastener
    G11427587Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws.
  6. Detach the tabs of the front bumper face from the radiator grille.

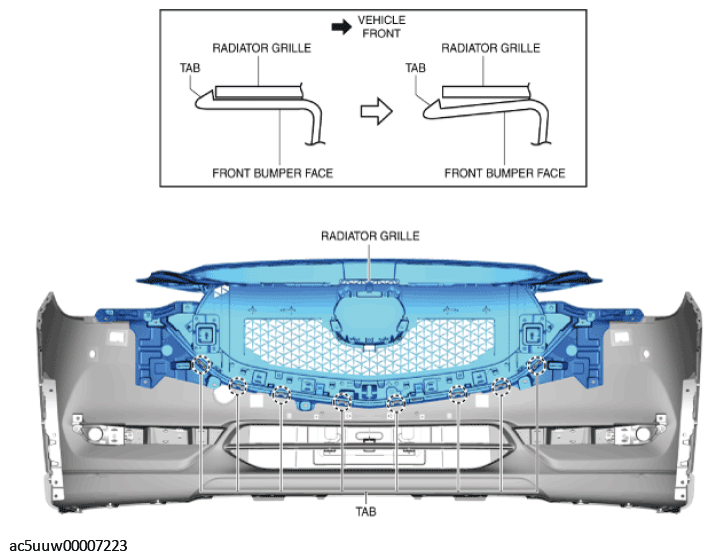

    Fig 2: Detaching Tabs Of Front Bumper Face From Radiator Grille
    G11427588Courtesy of MAZDA MOTORS CORP.
  7. Remove the radiator grille.
  8. Install in the reverse order of removal.
