Rear Spoiler Removal/Installation

Replacement parts

Double-sided adhesive tape

Number of parts: 2

Used place: Rear spoiler

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
3. Remove caps.

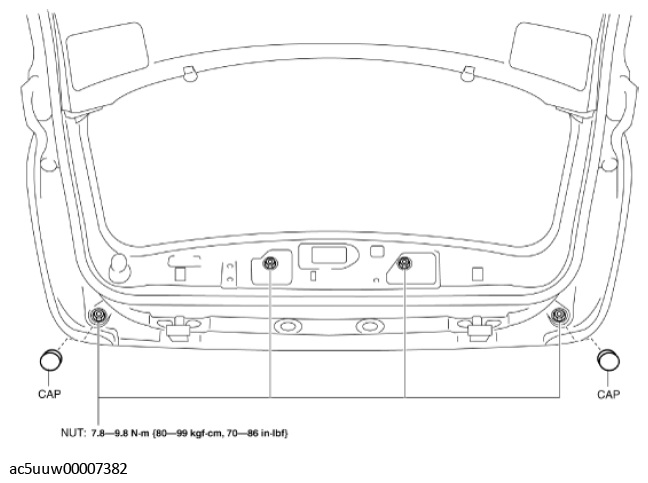

   Fig 1: Removing Caps

   Courtesy of MAZDA MOTORS CORP.
4. Remove the nuts.
5. Disconnect the high-mount brake light connector.

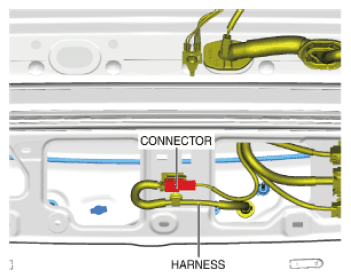

   Fig 2: Disconnecting High-Mount Brake Light Connector

   Courtesy of MAZDA MOTORS CORP.
6. Move the wiring harness and remove it from the clip.

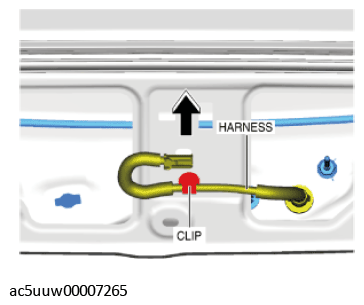

   Fig 3: Removing Wiring Harness From Clip

   Courtesy of MAZDA MOTORS CORP.
7. Attach a piece of wire between the liftgate striker and liftgate latch to hold the liftgate in the half-opened position as shown below.

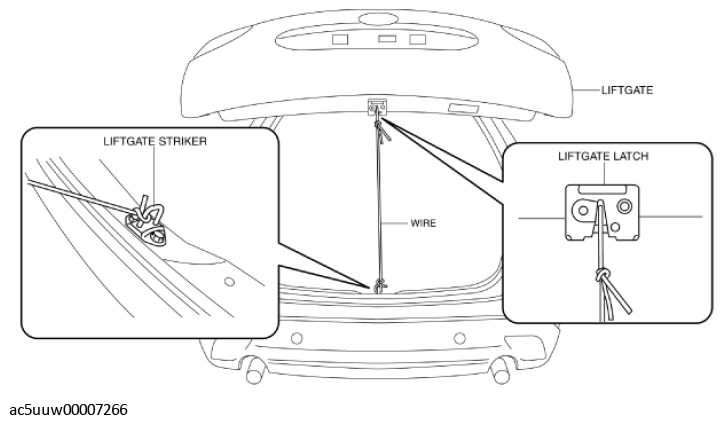

   Fig 4: Attaching Piece Of Wire Between Liftgate Striker And Liftgate Latch

   Courtesy of MAZDA MOTORS CORP.
8. Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

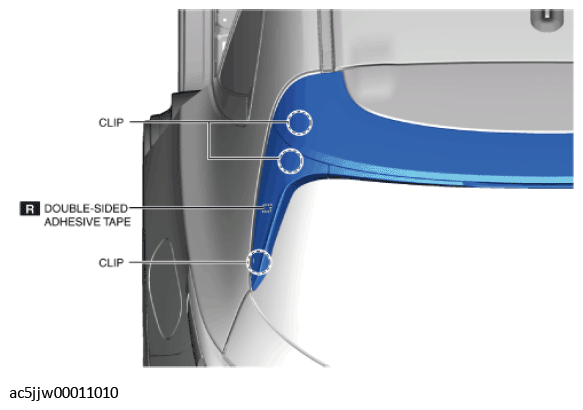

   Fig 5: Removing Double-Sided Adhesive Tape Using Utility Knife

   Courtesy of MAZDA MOTORS CORP.
9. Disengage the clips using the remover tool.
10. Perform the same procedure from Steps  8 and  9 for the opposite side of the vehicle.
    CAUTION:

    • When removing the rear spoiler, the rear spoiler may fall and be damaged. Perform the rear spoiler clip removal using two people.
11. Pull the rear spoiler in the direction of the arrows shown in the figure and remove it while detaching clips.

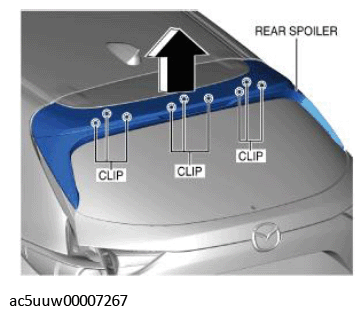

    Fig 6: Pulling Rear Spoiler

    Courtesy of MAZDA MOTORS CORP.
12. Install in the reverse order of removal.
