Roof Molding Installation

  1. Press the roof molding in the direction of arrow (1) shown in the figure and install it to the front T-stud.

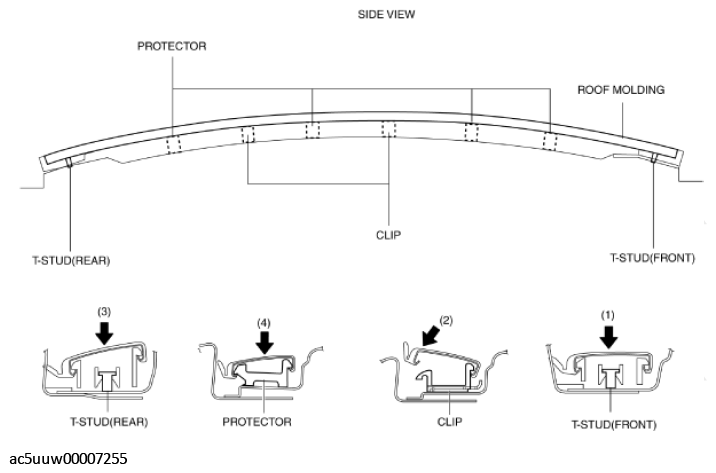

    Fig 1: Pressing Roof Molding
    G11427611Courtesy of MAZDA MOTORS CORP.
  2. Hook the roof molding to the clip and attach the roof molding while pressing it in the direction of arrow (2) shown in the figure.
  3. Press the roof molding in the direction of arrow (3) shown in the figure and install it to the rear T-stud.
  4. Press the protectors installation positions in the direction of arrow (4) shown in the figure and firmly adhere them to the body.
