Front Sash Molding Removal

Replacement parts

Front sash molding

Number of parts:1

Used place: Front sash molding

1. Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION .)
2. Remove the front beltline molding.(See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
3. Remove the front door garnish.(See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)

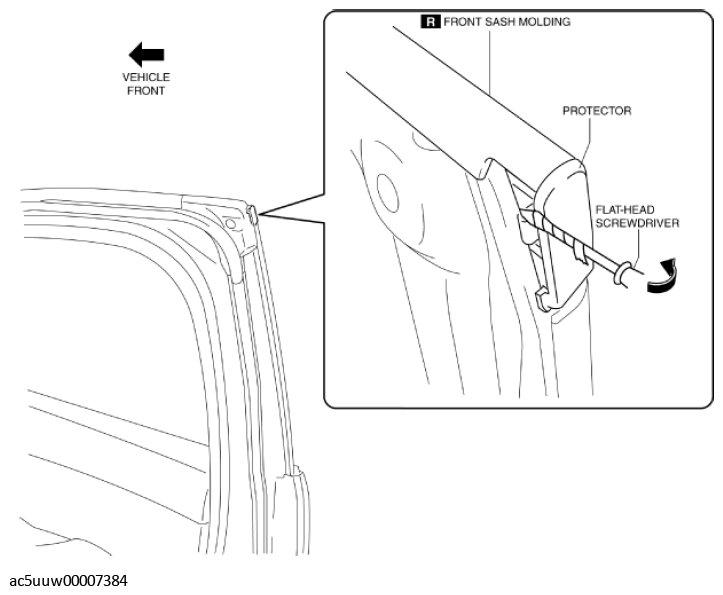

4. Insert a tape-wrapped flat head screwdriver shown in the figure and remove the protector in the direction of arrow (1).
   Fig 1: Removing Protector

   Courtesy of MAZDA MOTORS CORP.

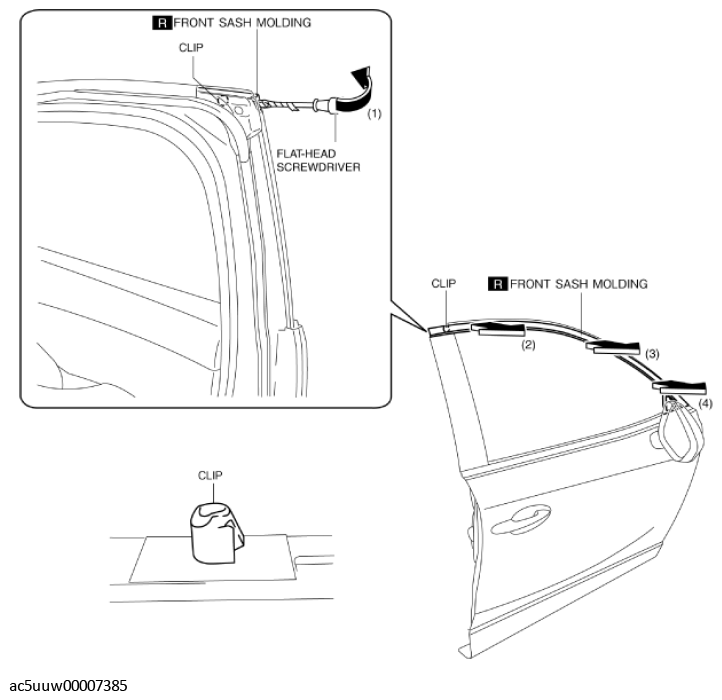

5. Insert a tape-wrapped flathead screwdriver shown in the figure and remove the clip in the direction of arrow (1).
   Fig 2: Removing Clip

   Courtesy of MAZDA MOTORS CORP.
6. Remove the rear sash molding in the direction of arrow in the order of (2), (3), (4) shown in the figure.
