FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove the bolts.

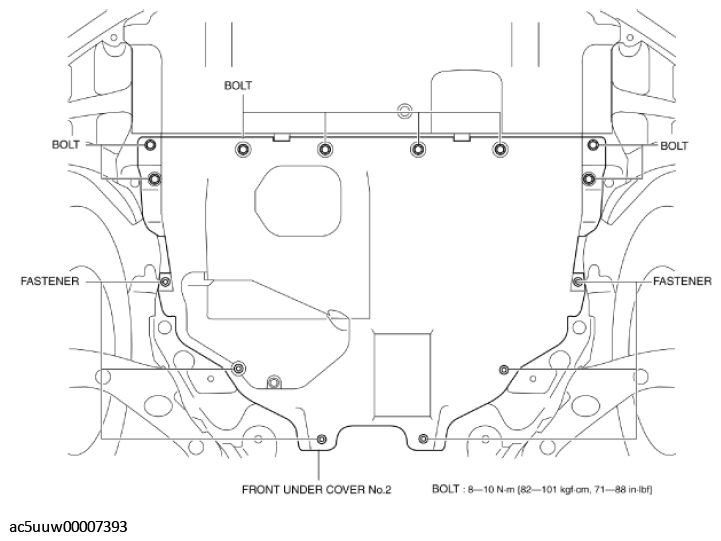

    Fig 1: Removing Front Under Cover No. 2 Bolts
    G11427569Courtesy of MAZDA MOTORS CORP.
  3. Remove the fasteners.
  4. Remove the front under cover No. 2.
  5. Install in the reverse order of removal.
