Sail Garnish Removal/Installation

  1. Open the front door.
  2. Affix protective tape to the position shown in the figure.

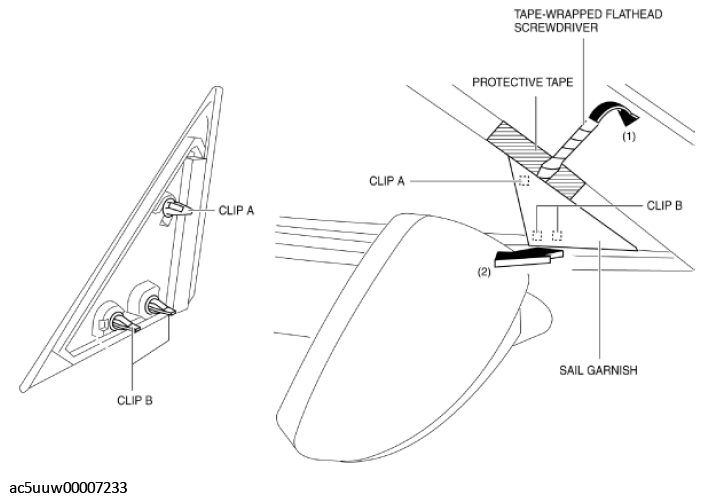

    Fig 1: Affixing Protective Tape To Sail Garnish
    G11427615Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped flathead screwdriver into the shown in the figure and remove the clip A in the direction of arrow (1).
  4. Pull the sail garnish in the direction of the arrow (2) and remove it while detaching clips B.
  5. Install in the reverse order of removal.
