Rear Sash Molding Removal

Replacement parts

Rear sash molding

Number of parts:1

Used place: Rear sash molding

WARNING:

Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Remove the rear beltline molding.(See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
Remove the rear door garnish.(See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.
CAUTION:
- When remove the double-sided adhesive tape, be careful not to damage the clip.
Fig 1: Removing Double-Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver shown in the figure and remove the protector in the direction of arrow (1).

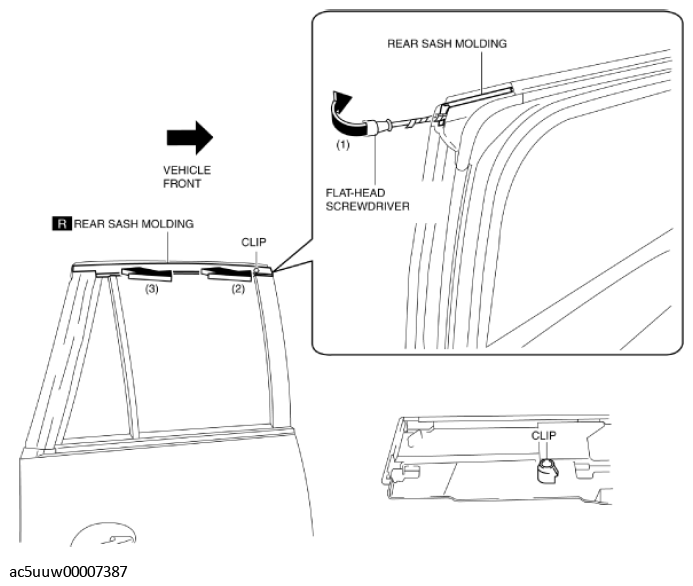

Fig 2: Pulling Rear Sash Molding
Courtesy of MAZDA MOTORS CORP.
Pull the rear sash molding in the direction of arrow in the order of (2), (3) shown in the figure and remove it.
