Front Sash Molding Installation
WARNING:
- Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
NOTE:
- Double-sided adhesive tape has already been attached to the new front sash molding.
- After aligning clip A to the rear sash molding installation hole, hook the rear sash molding tab to the rear door.

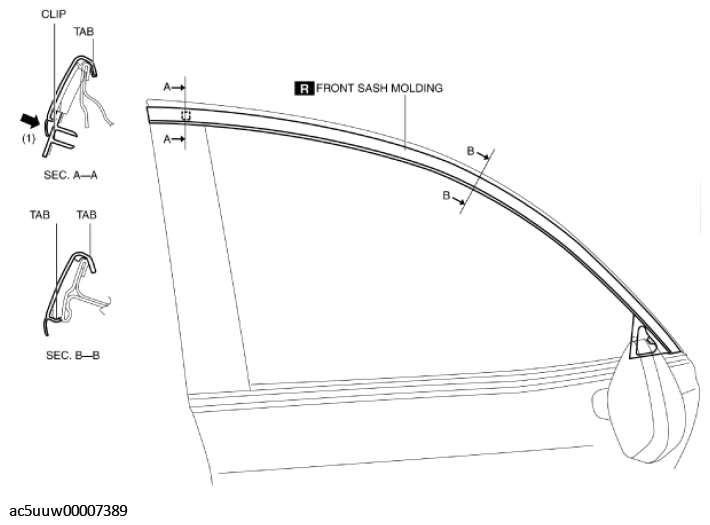

- Press in the front sash molding in the direction of the arrow shown in the figure and attach clip B to the rear door.CAUTION:
- Do not press the rear sash molding in any place other than the rubber areas.
- Press in the front sash molding in the direction of the arrow shown in the figure from vehicle front and install the tab to the rear door.
- Press in the front sash molding in the direction of the arrow shown in the figure and attach clip B to the rear door.NOTE:
- After installing the front sash molding, verify that tabs A and C are connected properly to the body.
