Side Step Molding Removal/Installation

Remove the front over fender lower. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
Remove the screw and washer.

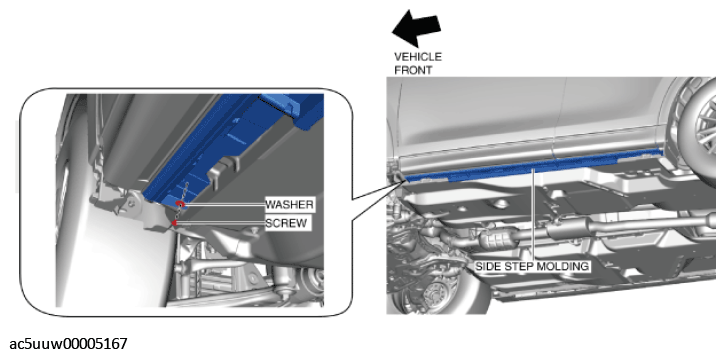

Fig 1: Removing Side Step Molding Screw And Washer
Courtesy of MAZDA MOTORS CORP.
Disengage the tabs.

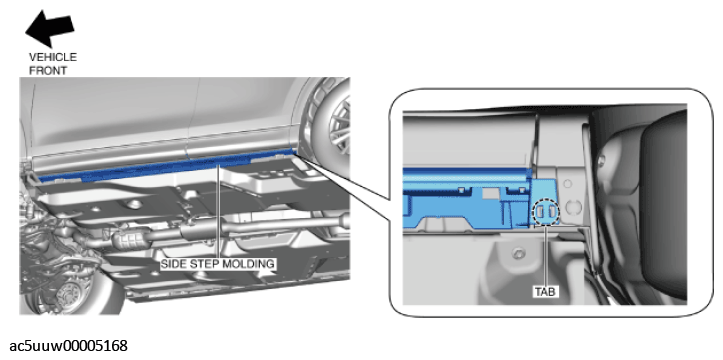

Fig 2: Disengaging Side Step Molding Tabs
Courtesy of MAZDA MOTORS CORP.
Move the side step molding in the direction of the arrow shown in the figure and remove it.

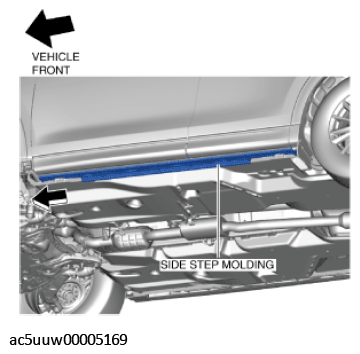

Fig 3: Removing Side Step Molding
Courtesy of MAZDA MOTORS CORP.
Remove the clips from the body.

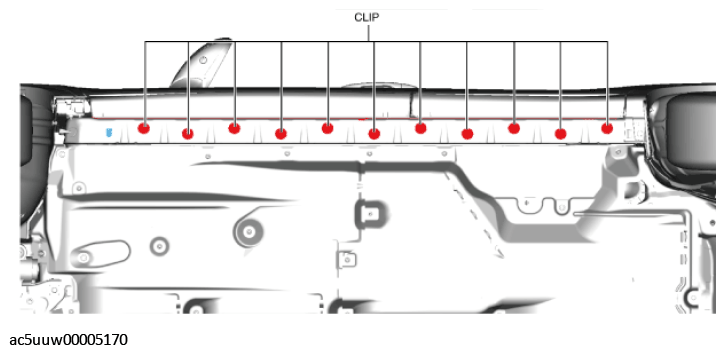

Fig 4: Removing Clips To Side Step Molding
Courtesy of MAZDA MOTORS CORP.
Install the clips to the side step molding.
Install in the reverse order of removal.
