Replace bumper cover, front
NOTE:
RISK OF DAMAGE
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
- Mask off the hood at the corners.
- Let the hood fall maximum 30-40 cm when closing it.
NOTE:
TECHNICAL INFORMATION
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to TRIMMING FRONT BUMPER COVER .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE NUMBER PLATE BASEPLATE FOR THE FRONT LICENSE PLATE .
- Refer to REMOVING THE RADIATOR GRILLE FRAME .
- Refer to REMOVING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING THE SUPPORT AT THE BOTTOM CENTER .
- Refer to REMOVING THE REINFORCEMENT FOR THE BUMPER COVER ON THE LEFT AND RIGHT SIDE .
- Refer to REMOVING THE TRIM ON THE LEFT AND RIGHT SIDE OF THE BUMPER COVER .
- Refer to REMOVING THE TRIM ON THE BUMPER PANEL .
- Refer to REMOVING THE ULTRASONIC SENSOR AT THE FRONT LEFT IN THE CENTER .
- Refer to REMOVING THE ULTRASONIC SENSOR AT THE FRONT RIGHT CENTER .
- Replace the front bumper cover.
Parts: Bumper cover, front
- Remove the wiring harness and remount it on the front bumper cover.
Replacing the holder for Park Distance Control (PDC)
NOTE:
TECHNICAL INFORMATION
Carry out the step only after painting the bumper cover.
Carry out the step only after painting the bumper cover.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Replace the holder for Park Distance Control (PDC).
Parts: Holder for Park Distance Control (PDC)

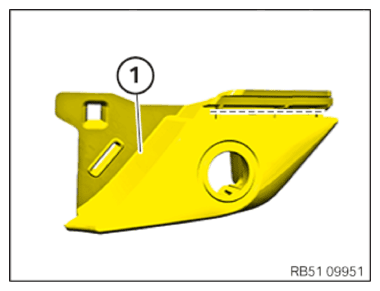

- Clean holder (1) in the adhesive area.
- Apply adhesive to holder (1) in the area of the dotted line.
ADHESIVE SPECIFICATION
| Plastic repair adhesive SF | 50 ml | 51915A44835 |
- Clean the bumper cover in the adhesive area.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |

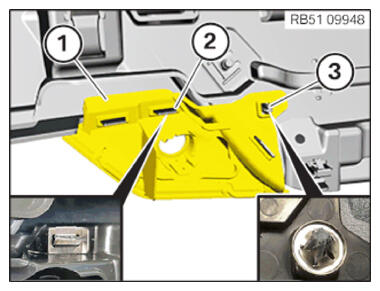

- Install holder (1) and position it properly.
- Mount the metal clip on lug (2) .
CONSUMABLE SPECIFICATION
| Clamp | 7.8 x 0.6 mm, Slot | 51417464302 |
- Mount the lock washer on centering pin (3) .
CONSUMABLE SPECIFICATION
| Lock washer | 11.5 mm, Outer diameter 64118247773 4 mm, Shaft diameter |
- Check if holder (1) fits tightly on the bumper cover.

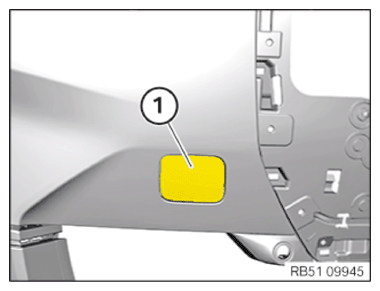

- Remove the lid (1) and mount it on the front bumper cover.
Follow-up work
- Refer to INSTALLING THE ULTRASONIC SENSOR AT THE FRONT RIGHT IN THE CENTER .
- Refer to INSTALLING THE ULTRASONIC SENSOR AT THE FRONT, IN THE CENTER ON THE LEFT .
- Refer to INSTALLING THE TRIM ON THE BUMPER PANEL .
- Refer to INSTALLING THE TRIM ON THE LEFT AND RIGHT SIDE OF THE BUMPER COVER .
- Refer to INSTALLING THE REINFORCEMENT FOR THE LEFT AND RIGHT SIDE OF THE BUMPER COVER .
- Refer to INSTALLING THE SUPPORT AT THE BOTTOM CENTER .
- Refer to INSTALLING THE FRONT BUMPER COVER .
- Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
- Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
NOTE:
RISK OF DAMAGE
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
- Mask off the hood at the corners.
- Let the hood fall maximum 30-40 cm when closing it.
NOTE:
TECHNICAL INFORMATION
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to TRIMMING FRONT BUMPER COVER .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE NUMBER PLATE BASEPLATE FOR THE FRONT LICENSE PLATE .
- Refer to REMOVING THE RADIATOR GRILLE FRAME .
- Refer to REMOVING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING THE SUPPORT AT THE BOTTOM CENTER .
- Refer to REMOVING THE REINFORCEMENT FOR THE LEFT AND RIGHT BUMPER COVER (M AERODYNAMICS PACKAGE) .
- Refer to REMOVING THE TRIM ON THE LEFT AND RIGHT BUMPER COVER (M AERODYNAMICS PACKAGE) .
- Refer to REMOVING THE ULTRASONIC SENSOR AT THE FRONT LEFT IN THE CENTER .
- Refer to REMOVING THE ULTRASONIC SENSOR AT THE FRONT RIGHT CENTER .
- Replace the front bumper cover.
Parts: Bumper cover, front
- Remove the wiring harness and remount it on the front bumper cover.
Replacing the holder for Park Distance Control (PDC)
NOTE:
TECHNICAL INFORMATION
Carry out the step only after painting the bumper cover.
Carry out the step only after painting the bumper cover.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Replace the holder for Park Distance Control (PDC).
Parts: Holder for Park Distance Control (PDC)
- Clean holder (1) in the adhesive area.
- Apply adhesive to holder (1) in the area of the dotted line.
ADHESIVE SPECIFICATION
| Plastic repair adhesive SF | 50 ml | 51915A44835 |
- Clean the bumper cover in the adhesive area.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Install holder (1) and position it properly.
- Mount the metal clip on lug (2) .
CONSUMABLE SPECIFICATION
| Clamp | 7.8 x 0.6 mm, Slot | 51417464302 |
- Mount the lock washer on centering pin (3) .
CONSUMABLE SPECIFICATION
| Lock washer | 11.5 mm, Outer diameter | 64118247773 4 mm, Shaft diameter |
- Check if holder (1) fits tightly on the bumper cover.
- Remove the lid (1) and mount it on the front bumper cover.
Follow-up work
- Refer to INSTALLING THE ULTRASONIC SENSOR AT THE FRONT RIGHT IN THE CENTER .
- Refer to INSTALLING THE ULTRASONIC SENSOR AT THE FRONT, IN THE CENTER ON THE LEFT .
- Refer to INSTALLING THE TRIM ON THE LEFT AND RIGHT BUMPER COVER (M AERODYNAMICS PACKAGE) .
- Refer to INSTALLING THE REINFORCEMENT FOR THE LEFT AND RIGHT BUMPER COVER (M AERODYNAMICS PACKAGE) .
- Refer to INSTALLING THE SUPPORT AT THE BOTTOM CENTER .
- Refer to INSTALLING THE FRONT BUMPER COVER .
- Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
- Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
