(Installing the reinforcement for the left and right side of the bumper cover)

NOTE: Description is for left component only. Procedure on the right side is identical.

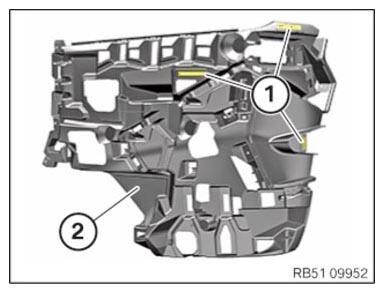

• Clean the bonding surfaces on reinforcement (2) and on the bumper cover.
  (CONSUMABLE SPECIFICATIONS)



  Cleaning agent R2

  500 ml

  83190417324

  (TECHNICAL DATA SPECIFICATIONS)



  Air drying time after cleaning
  	Cleaning agent R2	5 min

• Affix adhesive strip (1) on reinforcement (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

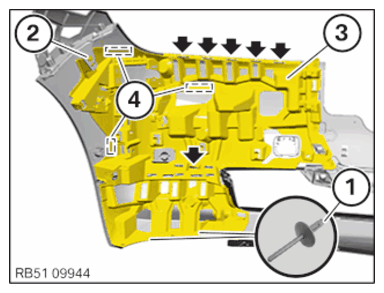

• Install reinforcement (3) and snap it into detents (arrows).
• Press reinforcement (3) on adhesive strip (4) firmly.
• Tighten down screw (2).
  (TIGHTENING TORQUES SPECIFICATIONS)



  Bumper cover
  Screw for thermoplastics	Tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the blind rivet (1) using the special tool 0 496 521 (00 2 230).

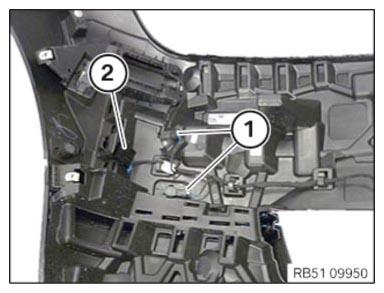

• Secure wiring harness (2) to the reinforcement.
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
