(Putting the front radar sensors into operation)
NOTE:
TECHNICAL INFORMATION
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
NOTE:
TECHNICAL INFORMATION
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will not be invoiced as a warranty case.
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will not be invoiced as a warranty case.
- Check the vehicle and components for damage .
Check
- Check visible areas carefully:
- damage
- deformation
Result
» For damage or deformation.
Measure
- To identify damaged or deformed vehicle parts and replace them.
Result
» No damage or deformation is present.
Measure
- Put the radar sensors into operation.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Dynamic commissioning (calibration run required)
- Follow the diagnosis instructions to adjust the radar sensors
.
FAQ for dynamic commissioning of the radar sensors
NOTE: TECHNICAL INFORMATION
The static commissioning of the radar sensors must be carried out on the appropriately equipped headlight setting space. - Have special tools 5 A40 812, 5 A40 810, 5 A40 808, 5 A40 809, 2 338 466 ready.
- Set up the special tools according to the operating instructions provided.

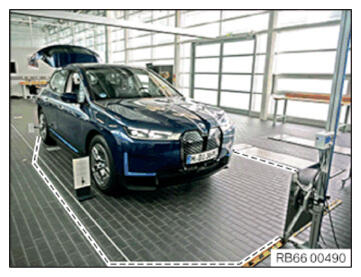

- The marked areas must be clear of people or objects.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Static commissioning (special tools required)
- To adjust the front radar sensor (FRS) or the front radar sensor long range (FRSF), follow the diagnosis instructions
.
FAQ for static commissioning of the radar sensors
Putting both front close range side radar sensors and front radar sensor (FRS/FRSF) into operation:
NOTE:
TECHNICAL INFORMATION
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
NOTE:
TECHNICAL INFORMATION
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will not be invoiced as a warranty case.
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will not be invoiced as a warranty case.
- Check the vehicle and components for damage.
Check
- Check visible areas carefully:
- damage
- deformation
Result
» For damage or deformation.
Measure
- To identify damaged or deformed vehicle parts and replace them.
Result
» No damage or deformation is present.
Measure
- Put the radar sensors into operation.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Dynamic commissioning (calibration run required)
- Follow the diagnosis instructions for dynamic commissioning of the radar sensors
.
FAQ for dynamic commissioning of the radar sensors
- Static commissioning of the radar sensors:NOTE: TECHNICAL INFORMATION
The static commissioning of the radar sensors must be carried out on the appropriately equipped headlight setting space.NOTE: Perform the steps on the right and left side.NOTE: Description is for right component only. The procedure on the left side is identical. - Have special tools 5 A40 812, 5 A40 810, 5 A40 808, 5 A40 809, 2 338 466, 5 A40 814 ready.
- Set up the special tools according to the operating instructions provided.

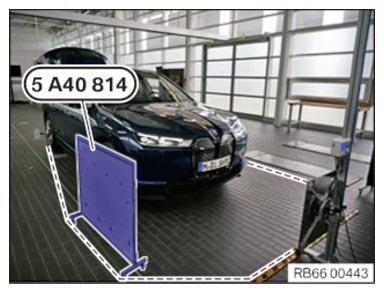

- Position special tool 5 A40 814 for shielding interference factors parallel lengthwise on the vehicle.
- The marked areas around special tool 5 A40 814
must be clear of people or objects.NOTE: Perform the steps on the right and left side.

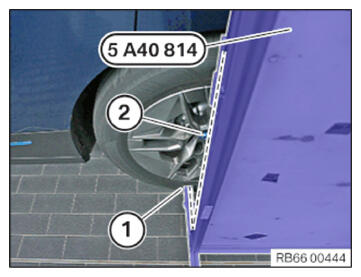

- Leave special tool 5 A40 814 under tire (1).
- Align special tool 5 A40 814
with wheel hub (2) in the center in the marked area.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Static start-up (special tool required)
- Follow the diagnosis instructions for static commissioning of the radar sensors
.
FAQ for static commissioning of the radar sensors
Put both front close range side radar sensors into operation:
NOTE:
TECHNICAL INFORMATION
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
The dynamic and static commissioning of the radar sensors is the same.
The service center is responsible for deciding how to proceed.
NOTE:
TECHNICAL INFORMATION
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will no be invoiced as a warranty case.
If the fault memory entry "misaligned" is present and correct commissioning cannot be initiated, there is reason to suspect damage from an accident.
In this case, the vehicle must be examined carefully for damage. If necessary, damaged parts must be replaced. Then put the radar sensors into operation again.
A damaged/bent holder indicates mechanical misuse of the vehicle and will no be invoiced as a warranty case.
- Check the vehicle and components for damage .
Check
- Check visible areas carefully:
- damage
- deformation
Result
» For damage or deformation.
Measure
- To identify damaged or deformed vehicle parts and replace them.
Result
» No damage or deformation is present.
Measure
- Put the radar sensors into operation.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Dynamic commissioning (calibration run required)
- Follow the diagnosis instructions to adjust the radar sensors
.
FAQ for dynamic commissioning of the radar sensors
NOTE: TECHNICAL INFORMATION
The static commissioning of the radar sensors must be carried out on the appropriately equipped headlight setting space.NOTE: Perform the steps on the right and left side.NOTE: Description is for right component only.
The procedure on the left side is identical. - Have special tools 5 A40 812, 5 A40 810, 5 A40 808, 5 A40 809, 2 338 466, 5 A40 814 ready.
- Set up the special tools according to the operating instructions provided.
- Position special tool 5 A40 814 for shielding interference factors parallel lengthwise on the vehicle.
- The marked areas around special tool 5 A40 814
must be clear of people or objects.NOTE: Perform the steps on the right and left side.
- Leave special tool 5 A40 814 under tire (1).
- Align special tool 5 A40 814
with wheel hub (2) in the center in the marked area.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Radar sensors
- Static start-up (special tool required)
- Follow the diagnosis instructions to set the side radar sensors
.
FAQ for static commissioning of the radar sensors
