Installing the front ornamental grille/radome

NOTE: RISK OF DAMAGE
Center front ornamental grille falling off.
Damage in the connector area of the radome.

It is imperative to replace components that have fallen off even if there is no visible damage.

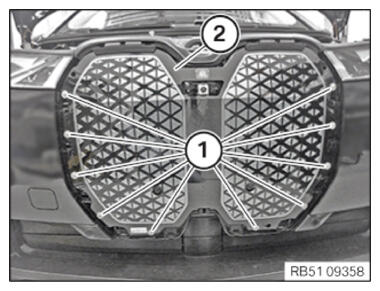

Install the radiator grille (2) and connect any connectors, if present.
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Radiator grille/frame on holder
Screw	Tightening torque	3 Nm

G16853854

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
Refer to CLOSING THE ENGINE COMPARTMENT LID .
Refer to PUTTING THE FRONT RADAR SENSOR (FRS) OR THE FRONT RADAR SENSOR LONG RANGE (FRSF) INTO OPERATION .
