Removing the ultrasonic sensor at the front right center

NOTE: Description is for left component only. Procedure on the right side is identical.

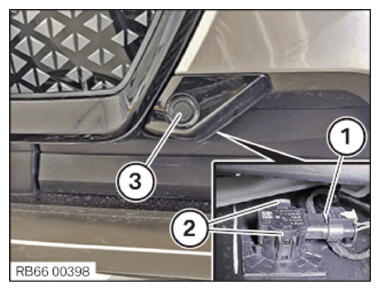

• Unlock plug connection (1)  and disconnect.
• Unlock the locks (2)  .
• Feed out the ultrasonic sensor (3)  and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
