Installing the front radiator grill frame

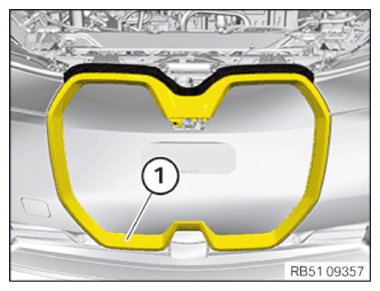

• Position radiator grille frame (1)  correctly and engage it into all the detents.

  Courtesy of BMW OF NORTH AMERICA, INC.

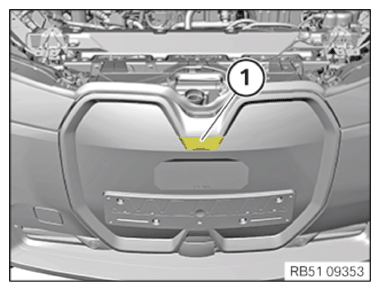

• Tighten down screw (1)  .

• Install the expanding rivet (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install and lock trim (1)  in place.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
