(Installing the front section of the front wheel arch cover on the left and right)
NOTE:
Perform the steps on the left and right side.
NOTE:

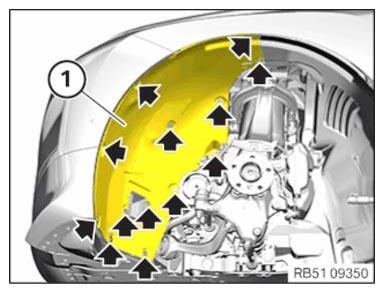

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (1) in.
- Tighten screws (arrows).
(TIGHTENING TORQUES SPECIFICATIONS)
| Wheel arch cover | ||
|---|---|---|
| Screw | Tightening torque | 2.3 Nm |
| Plastic nut | Tightening torque | 2.3 Nm |
